深度学习开源库tiny-dnn的使用(MNIST)

tiny-dnn是一个基于DNN的深度学习开源库，它的License是BSD 3-Clause。之前名字是tiny-cnn是基于CNN的，tiny-dnn与tiny-cnn相关又增加了些新层。此开源库很活跃，几乎每天都有新的提交，因此下面详细介绍下tiny-dnn在windows7 64bit vs2013的编译及使用。

1.      从https://github.com/tiny-dnn/tiny-dnn 下载源码：

$ git clone https://github.com/tiny-dnn/tiny-dnn.git 版本号为6281c1b，更新日期2016.12.03

2.      源文件中已经包含了vs2013工程，vc/vc12/tiny-dnn.sln，默认是win32的，这里新建一个x64的控制台工程tiny-dnn；

3.      仿照源工程，将相应.h文件加入到新控制台工程中，新加一个test_tiny-dnn.cpp文件；

4.      仿照examples/mnist中test.cpp和train.cpp文件中的代码添加测试代码；

#include "funset.hpp"
#include <string>
#include <algorithm>
#include "tiny_dnn/tiny_dnn.h"static void construct_net(tiny_dnn::network<tiny_dnn::sequential>& nn)
{// connection table [Y.Lecun, 1998 Table.1]
#define O true
#define X falsestatic const bool tbl[] = {O, X, X, X, O, O, O, X, X, O, O, O, O, X, O, O,O, O, X, X, X, O, O, O, X, X, O, O, O, O, X, O,O, O, O, X, X, X, O, O, O, X, X, O, X, O, O, O,X, O, O, O, X, X, O, O, O, O, X, X, O, X, O, O,X, X, O, O, O, X, X, O, O, O, O, X, O, O, X, O,X, X, X, O, O, O, X, X, O, O, O, O, X, O, O, O};
#undef O
#undef X// by default will use backend_t::tiny_dnn unless you compiled// with -DUSE_AVX=ON and your device supports AVX intrinsicstiny_dnn::core::backend_t backend_type = tiny_dnn::core::default_engine();// construct nets: C: convolution; S: sub-sampling; F: fully connectednn << tiny_dnn::convolutional_layer<tiny_dnn::activation::tan_h>(32, 32, 5, 1, 6,  // C1, 1@32x32-in, 6@28x28-outtiny_dnn::padding::valid, true, 1, 1, backend_type)<< tiny_dnn::average_pooling_layer<tiny_dnn::activation::tan_h>(28, 28, 6, 2)   // S2, 6@28x28-in, 6@14x14-out<< tiny_dnn::convolutional_layer<tiny_dnn::activation::tan_h>(14, 14, 5, 6, 16, // C3, 6@14x14-in, 16@10x10-outconnection_table(tbl, 6, 16),tiny_dnn::padding::valid, true, 1, 1, backend_type)<< tiny_dnn::average_pooling_layer<tiny_dnn::activation::tan_h>(10, 10, 16, 2)  // S4, 16@10x10-in, 16@5x5-out<< tiny_dnn::convolutional_layer<tiny_dnn::activation::tan_h>(5, 5, 5, 16, 120, // C5, 16@5x5-in, 120@1x1-outtiny_dnn::padding::valid, true, 1, 1, backend_type)<< tiny_dnn::fully_connected_layer<tiny_dnn::activation::tan_h>(120, 10,        // F6, 120-in, 10-outtrue, backend_type);
}static void train_lenet(const std::string& data_dir_path)
{// specify loss-function and learning strategytiny_dnn::network<tiny_dnn::sequential> nn;tiny_dnn::adagrad optimizer;construct_net(nn);std::cout << "load models..." << std::endl;// load MNIST datasetstd::vector<tiny_dnn::label_t> train_labels, test_labels;std::vector<tiny_dnn::vec_t> train_images, test_images;tiny_dnn::parse_mnist_labels(data_dir_path + "/train-labels.idx1-ubyte", &train_labels);tiny_dnn::parse_mnist_images(data_dir_path + "/train-images.idx3-ubyte", &train_images, -1.0, 1.0, 2, 2);tiny_dnn::parse_mnist_labels(data_dir_path + "/t10k-labels.idx1-ubyte", &test_labels);tiny_dnn::parse_mnist_images(data_dir_path + "/t10k-images.idx3-ubyte", &test_images, -1.0, 1.0, 2, 2);std::cout << "start training" << std::endl;tiny_dnn::progress_display disp(static_cast<unsigned long>(train_images.size()));tiny_dnn::timer t;int minibatch_size = 10;int num_epochs = 30;optimizer.alpha *= static_cast<tiny_dnn::float_t>(std::sqrt(minibatch_size));// create callbackauto on_enumerate_epoch = [&](){std::cout << t.elapsed() << "s elapsed." << std::endl;tiny_dnn::result res = nn.test(test_images, test_labels);std::cout << res.num_success << "/" << res.num_total << std::endl;disp.restart(static_cast<unsigned long>(train_images.size()));t.restart();};auto on_enumerate_minibatch = [&](){disp += minibatch_size;};// trainingnn.train<tiny_dnn::mse>(optimizer, train_images, train_labels, minibatch_size, num_epochs, on_enumerate_minibatch, on_enumerate_epoch);std::cout << "end training." << std::endl;// test and show resultsnn.test(test_images, test_labels).print_detail(std::cout);// save network model & trained weightsnn.save(data_dir_path + "/LeNet-model");
}// rescale output to 0-100
template <typename Activation>
static double rescale(double x)
{Activation a;return 100.0 * (x - a.scale().first) / (a.scale().second - a.scale().first);
}static void convert_image(const std::string& imagefilename, double minv, double maxv, int w, int h, tiny_dnn::vec_t& data)
{tiny_dnn::image<> img(imagefilename, tiny_dnn::image_type::grayscale);tiny_dnn::image<> resized = resize_image(img, w, h);// mnist dataset is "white on black", so negate requiredstd::transform(resized.begin(), resized.end(), std::back_inserter(data),[=](uint8_t c) { return (255 - c) * (maxv - minv) / 255.0 + minv; });
}int test_dnn_mnist_train()
{std::string data_dir_path = "E:/GitCode/NN_Test/data";train_lenet(data_dir_path);return 0;
}int test_dnn_mnist_predict()
{std::string model { "E:/GitCode/NN_Test/data/LeNet-model" };std::string image_path { "E:/GitCode/NN_Test/data/images/"};int target[10] { 0, 1, 2, 3, 4, 5, 6, 7, 8, 9 };tiny_dnn::network<tiny_dnn::sequential> nn;nn.load(model);for (int i = 0; i < 10; i++) {std::string str = std::to_string(i);str += ".png";str = image_path + str;// convert imagefile to vec_ttiny_dnn::vec_t data;convert_image(str, -1.0, 1.0, 32, 32, data);// recognizeauto res = nn.predict(data);std::vector<std::pair<double, int> > scores;// sort & print top-3for (int j = 0; j < 10; j++)scores.emplace_back(rescale<tiny_dnn::tan_h>(res[j]), j);std::sort(scores.begin(), scores.end(), std::greater<std::pair<double, int>>());for (int j = 0; j < 3; j++)fprintf(stdout, "%d: %f;  ", scores[j].second, scores[j].first);fprintf(stderr, "\n");// save outputs of each layerfor (size_t j = 0; j < nn.depth(); j++) {auto out_img = nn[j]->output_to_image();auto filename = image_path + std::to_string(i) + "_layer_" + std::to_string(j) + ".png";out_img.save(filename);}// save filter shape of first convolutional layerauto weight = nn.at<tiny_dnn::convolutional_layer<tiny_dnn::tan_h>>(0).weight_to_image();auto filename = image_path + std::to_string(i) + "_weights.png";weight.save(filename);fprintf(stdout, "the actual digit is: %d, correct digit is: %d \n\n", scores[0].second, target[i]);}return 0;
}

5.      运行程序，train时，运行结果如下图所示，准确率达到99%以上：

6.  对生成的model进行测试，通过画图工具，每个数字生成一张图像，共10幅，如下图：

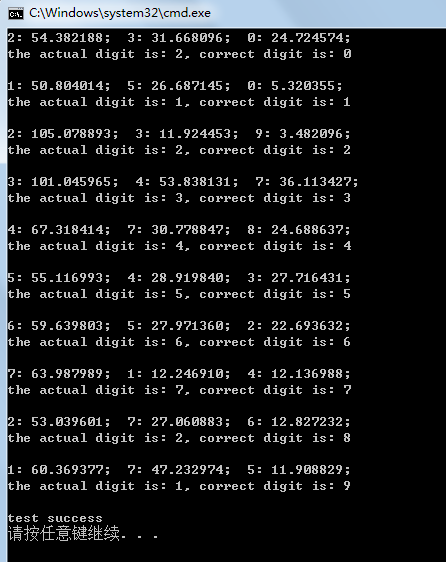

7. 通过导入train时生成的model，对这10张图像进行识别，识别结果如下图，其中0,8,9被误识别为2,2,1.

GitHub：https://github.com/fengbingchun/NN_Test
