完善登录注册页面

实验内容

综合运用基本组件完成一个注册与登录的应用程序设计。要求基于基础控件，综合使用Intent实现Android的Activity之间信息交换。系统包含启动页、注册页、登录页3个页面，具体要求如下：

在第2周上机作业的基础上，完善登录注册页面。

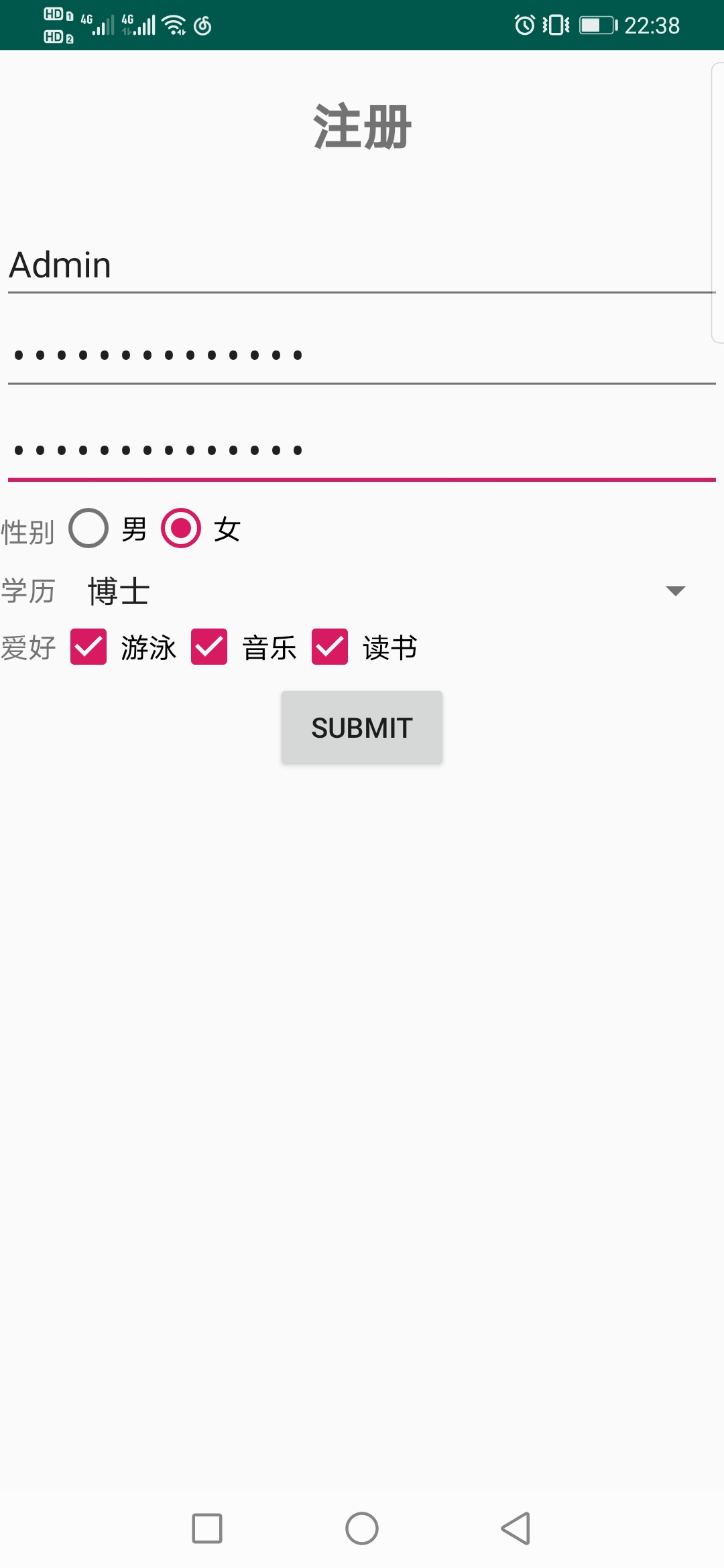

1.注册页面和功能的实现。

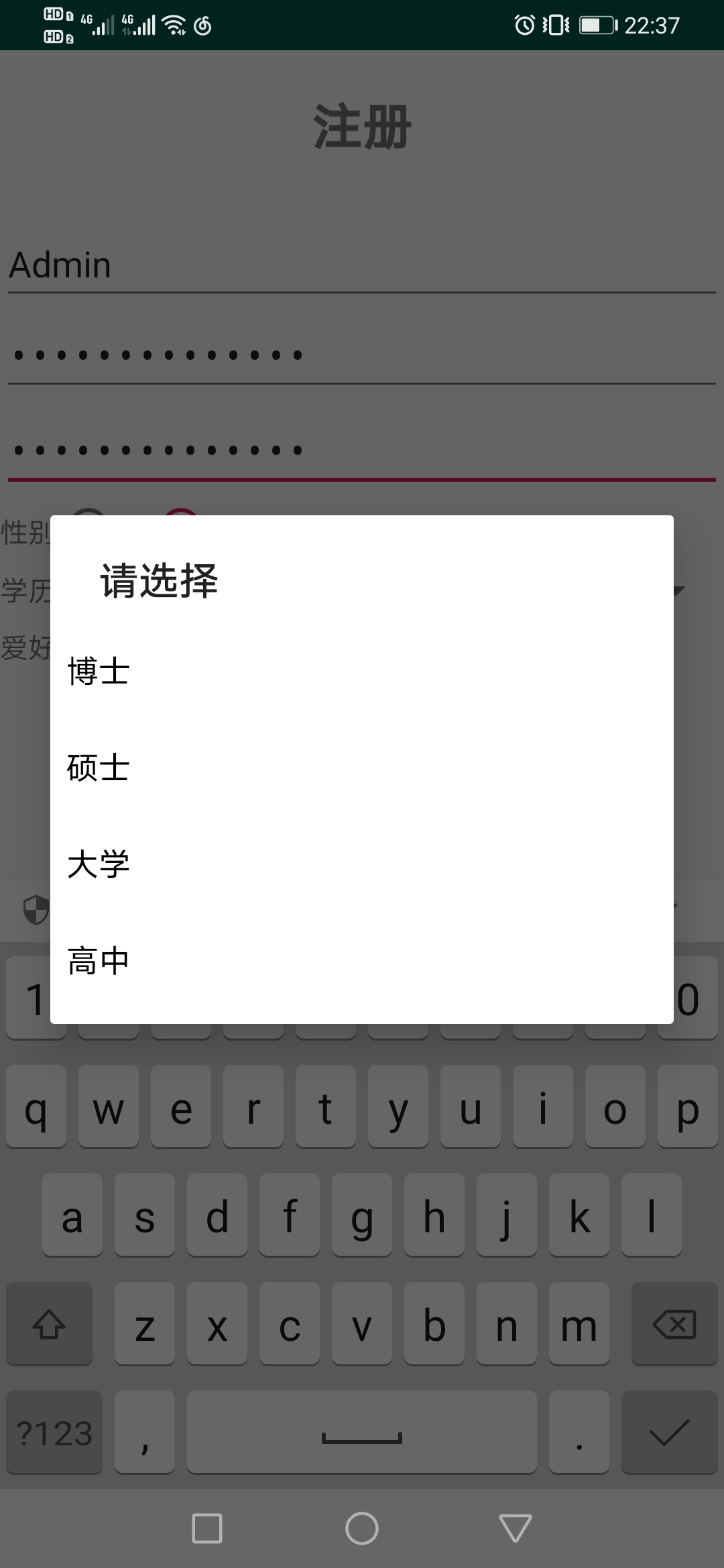

界面除用户名、密码、确认密码之外，增加性别(单选按钮)、学历(spinner)、爱好(复选框)等信息。

使用相对布局。

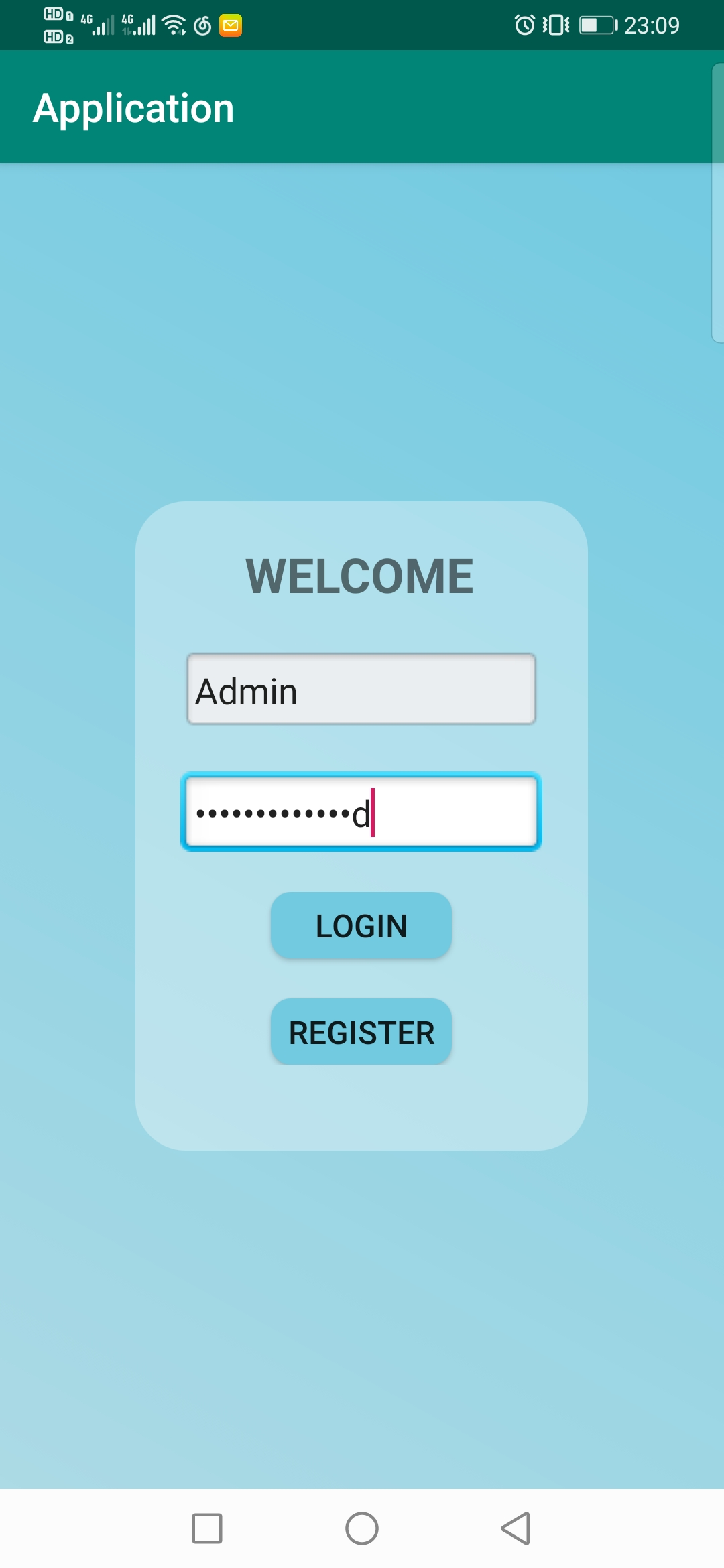

2.登陆页面和功能的实现。

要求使用Shape和Selector对页面进行美化。按第3章的课件中的提示可完成。

附件内容包括一张用于启动页的图片，2张用于编辑框美化的背景图片。

MainActivity.java

package com.example.myapplication1;import android.content.Intent;
import android.os.Bundle;
import android.view.Gravity;
import android.view.View;
import android.widget.Button;
import android.widget.EditText;
import android.widget.Toast;import androidx.appcompat.app.AppCompatActivity;public class MainActivity extends AppCompatActivity {private Button button1,button2;@Overrideprotected void onCreate(Bundle savedInstanceState) {super.onCreate(savedInstanceState);setContentView(R.layout.activity_main);button1=(Button)findViewById(R.id.button1);//映射activity_main.xml中的id=button1按钮button2=(Button)findViewById(R.id.button2);//映射activity_main.xml中的id=button2按钮final String user = "Admin";final String pass = "I love Android" ;//为两个按钮增加点击事件监听button1.setOnClickListener(new View.OnClickListener() {@Overridepublic void onClick(View v) {String username = "";EditText editText1 = (EditText)findViewById(R.id.editText);username = editText1.getText().toString();String password = "";EditText editText2 = (EditText)findViewById(R.id.editText2);password = editText2.getText().toString();if(username.equals(user) && password.equals(pass)){String msg = "欢迎进入DIY！";Toast toast = Toast.makeText(MainActivity.this,msg,Toast.LENGTH_SHORT);toast.setGravity(Gravity.CENTER,0,0);toast.show();Intent intent = new Intent(MainActivity.this,SubActivity1.class);startActivity(intent);}else{String msg = "Wrong username or password.Please try again!";Toast toast = Toast.makeText(MainActivity.this,msg,Toast.LENGTH_SHORT);toast.setGravity(Gravity.CENTER,0,0);toast.show();}}});button2.setOnClickListener(new View.OnClickListener() {@Overridepublic void onClick(View v) {Intent intent=new Intent(MainActivity.this,SubActivity2.class);startActivity(intent);}});}}

SplashActivity.java

package com.example.myapplication1;import android.content.Intent;
import android.os.Bundle;
import android.os.Handler;
import android.view.Window;
import android.view.WindowManager;import androidx.annotation.Nullable;
import androidx.appcompat.app.AppCompatActivity;public class SplashActivity extends AppCompatActivity {@Overrideprotected void onCreate(@Nullable Bundle savedInstanceState) {super.onCreate(savedInstanceState);requestWindowFeature(Window.FEATURE_NO_TITLE);setContentView(R.layout.activity_splash);//加上这句设置为全屏不加只隐藏titlegetWindow().setFlags(WindowManager.LayoutParams.FLAG_FULLSCREEN,WindowManager.LayoutParams.FLAG_FULLSCREEN);new Handler().postDelayed(new Runnable() {@Overridepublic void run() {Intent mainIntent = new Intent(SplashActivity.this,MainActivity.class);startActivity(mainIntent);//动画效果overridePendingTransition(R.anim.abc_slide_in_bottom, R.anim.abc_slide_out_bottom);finish();}},3000);}
}

SubActivity1.java

package com.example.myapplication1;import android.app.Activity;
import android.os.Bundle;import androidx.annotation.Nullable;public class SubActivity1 extends Activity {@Overrideprotected void onCreate(@Nullable Bundle savedInstanceState) {super.onCreate(savedInstanceState);setContentView(R.layout.activity_sub1);/* Button button1;button1=(Button)findViewById(R.id.button1);button1.setOnClickListener(new View.OnClickListener() {@Overridepublic void onClick(View v) {String msg = "欢迎进入DIY！";Toast toast = Toast.makeText(SubActivity1.this,msg,Toast.LENGTH_SHORT);toast.setGravity(Gravity.CENTER,0,0);toast.show();}});*/}
}

SubActivity2.java

package com.example.myapplication1;import android.app.Activity;
import android.os.Bundle;
import android.view.Gravity;
import android.view.View;
import android.widget.Button;
import android.widget.EditText;
import android.widget.Toast;import androidx.annotation.Nullable;public class SubActivity2 extends Activity {private Button button3;protected void onCreate(@Nullable Bundle savedInstanceState) {super.onCreate(savedInstanceState);setContentView(R.layout.activity_sub2);button3=(Button)findViewById(R.id.button3);final EditText usernameET,passwordET;usernameET =(EditText)findViewById(R.id.editText5);passwordET = (EditText)findViewById(R.id.editText6);button3.setOnClickListener(new View.OnClickListener() {@Overridepublic void onClick(View v) {String msg = "您输入的用户名是"+usernameET.getText()+"\n"+"密码是"+passwordET.getText();Toast toast = Toast.makeText(SubActivity2.this,msg,Toast.LENGTH_SHORT);toast.setGravity(Gravity.CENTER,0,0);toast.show();}});}
}

acitivity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayoutxmlns:android="http://schemas.android.com/apk/res/android"xmlns:app="http://schemas.android.com/apk/res-auto"xmlns:tools="http://schemas.android.com/tools"android:layout_width="match_parent"android:layout_height="match_parent"android:orientation="vertical"android:gravity="center_horizontal|center_vertical"tools:context=".MainActivity"android:background="@drawable/background_login"><LinearLayoutandroid:layout_width="225dp"android:layout_height="323dp"android:background="@drawable/background_login_div"android:orientation="vertical"><TextViewandroid:layout_width="223dp"android:layout_height="wrap_content"android:gravity="center"android:text="WELCOME"android:textSize="24sp"android:textStyle="bold"android:layout_marginTop="20dp"/><EditTextandroid:id="@+id/editText"android:layout_width="180dp"android:layout_height="wrap_content"android:background="@drawable/edit_login"android:hint="请输入用户名"android:layout_gravity="center"android:layout_marginTop="20dp"/><EditTextandroid:id="@+id/editText2"android:layout_width="180dp"android:layout_height="wrap_content"android:background="@drawable/edit_login"android:hint="请输入密码"android:inputType="textPassword"android:layout_gravity="center"android:layout_marginTop="20dp"/><LinearLayoutandroid:layout_width="match_parent"android:layout_height="wrap_content"android:layout_marginTop="20dp"android:orientation="vertical"android:gravity="center_horizontal|center_vertical"><Buttonandroid:id="@+id/button1"android:layout_width="90dp"android:layout_height="33dp"android:layout_weight="1"android:background="@drawable/background_button_div"android:text="login"android:textSize="16sp"/><Buttonandroid:id="@+id/button2"android:layout_width="90dp"android:layout_height="33dp"android:layout_marginTop="20dp"android:layout_weight="1"android:background="@drawable/background_button_div"android:text="register"android:textSize="16sp"/></LinearLayout></LinearLayout>
</LinearLayout>

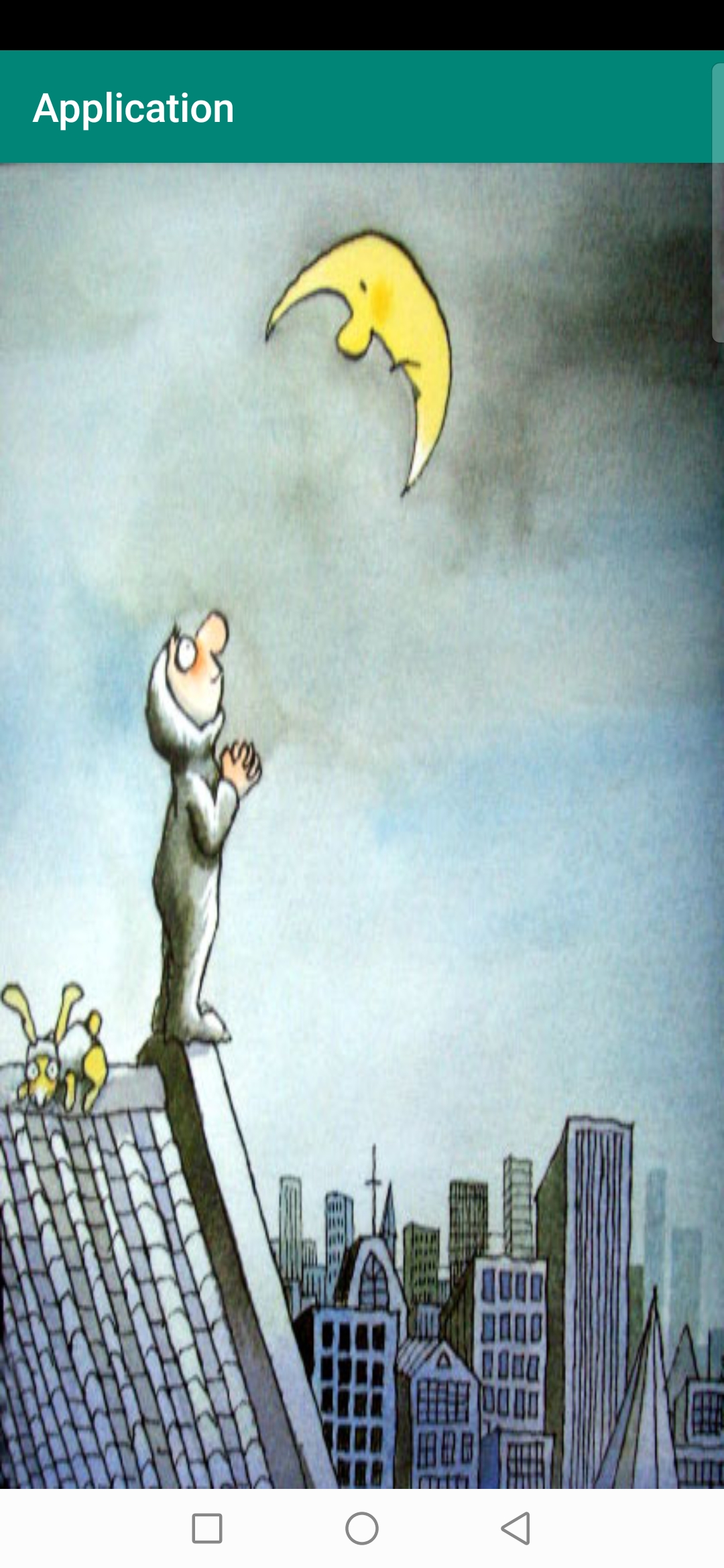

activity_splash.xml

<?xml version="1.0" encoding="utf-8"?>
<!--suppress ALL -->
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"android:orientation="vertical" android:layout_width="match_parent"android:layout_height="match_parent"><ImageViewandroid:id="@+id/imageView"android:layout_width="match_parent"android:layout_height="match_parent"android:src="@drawable/jimi1"android:scaleType="fitXY"/></LinearLayout>

activity_sub1.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"android:orientation="vertical" android:layout_width="match_parent"android:layout_height="match_parent"android:weightSum="1"><TextViewandroid:id="@+id/textView3"android:layout_width="match_parent"android:layout_height="match_parent"android:layout_marginTop="200dp"android:layout_weight="1"android:text="欢迎进入DIY！"android:textAlignment="center"android:textSize="24sp"android:textColor="@color/colorAccent"/></LinearLayout>

activity_sub2.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"xmlns:tools="http://schemas.android.com/tools"android:orientation="vertical" android:layout_width="match_parent"android:layout_height="match_parent"><TextViewandroid:id="@+id/signup_msg"android:layout_width="wrap_content"android:layout_height="wrap_content"android:text="@string/signup_msg"android:textSize="25sp"android:textStyle="bold"android:layout_centerHorizontal="true"android:layout_marginTop="20dp"/><EditTextandroid:id="@+id/editText5"android:layout_width="match_parent"android:layout_height="wrap_content"android:layout_below="@id/signup_msg"android:layout_marginTop="30dp"android:hint="@string/editText5"android:singleLine="true" /><EditTextandroid:id="@+id/editText6"android:layout_width="match_parent"android:layout_height="wrap_content"android:hint="@string/editText6"android:inputType="textPassword"android:layout_below="@id/editText5"/><EditTextandroid:id="@+id/editText7"android:layout_width="match_parent"android:layout_height="wrap_content"android:layout_below="@id/editText6"android:layout_marginTop="2dp"android:hint="@string/editText7"android:inputType="textPassword"tools:ignore="Autofill" /><TextViewandroid:id="@+id/sex_msg"android:layout_width="wrap_content"android:layout_height="wrap_content"android:text="@string/sex_msg"android:layout_below="@id/editText7"android:layout_marginTop="8dp"/><RadioGroupandroid:layout_width="match_parent"android:layout_height="wrap_content"android:layout_below="@id/editText7"android:layout_toRightOf="@id/sex_msg"android:orientation="horizontal"><RadioButtonandroid:id="@+id/sex_male"android:layout_width="wrap_content"android:layout_height="wrap_content"android:checked="true"android:text="@string/sex_male" /><RadioButtonandroid:id="@+id/sex_female"android:layout_width="wrap_content"android:layout_height="wrap_content"android:text="@string/sex_female" /></RadioGroup><TextViewandroid:id="@+id/academic_text"android:layout_width="wrap_content"android:layout_height="wrap_content"android:text="@string/academic_text"android:layout_below="@id/sex_msg"android:layout_marginTop="10dp"/><Spinnerandroid:id="@+id/academic_msg"android:layout_width="match_parent"android:layout_height="wrap_content"android:layout_below="@id/sex_msg"android:layout_marginStart="7dp"android:layout_marginLeft="7dp"android:layout_marginTop="8dp"android:layout_toEndOf="@+id/academic_text"android:layout_toRightOf="@+id/academic_text"android:entries="@array/academic"android:fadeScrollbars="true"android:prompt="@string/academic_prompt"android:scrollIndicators="right"android:spinnerMode="dialog"></Spinner><LinearLayout android:orientation="horizontal"android:layout_width="wrap_content"android:layout_height="wrap_content"android:id="@+id/hobby_msg"android:layout_below="@id/academic_msg"><TextViewandroid:layout_width="wrap_content"android:layout_height="wrap_content"android:text="爱好"/><CheckBoxandroid:layout_width="wrap_content"android:layout_height="wrap_content"android:id="@+id/hobby_swim"android:text="游泳"/><CheckBoxandroid:layout_width="wrap_content"android:layout_height="wrap_content"android:id="@+id/hobby_music"android:text="音乐"/><CheckBoxandroid:layout_width="wrap_content"android:layout_height="wrap_content"android:id="@+id/hobby_book"android:text="读书"/></LinearLayout><Buttonandroid:id="@+id/button3"android:layout_width="wrap_content"android:layout_height="wrap_content"android:text="@string/button3"android:layout_centerHorizontal="true"android:layout_below="@id/hobby_msg"/>
</RelativeLayout>

background_button_div.xml

<?xml version="1.0" encoding="utf-8"?>
<shape xmlns:android="http://schemas.android.com/apk/res/android"android:layout_width="match_parent"android:layout_height="match_parent"><solid android:color="#FF72CAE1"/><cornersandroid:bottomLeftRadius="10dp"android:bottomRightRadius="10dp"android:topLeftRadius="10dp"android:topRightRadius="10dp"/>
</shape>

background_login.xml

<?xml version="1.0" encoding="utf-8"?>
<shape xmlns:android="http://schemas.android.com/apk/res/android"android:layout_width="match_parent"android:layout_height="match_parent"><gradientandroid:angle="45"android:endColor="#FF72CAE1"android:startColor="#FFACDAE5"/></shape>

background_login_div.xml

<?xml version="1.0" encoding="utf-8"?>
<shape xmlns:android="http://schemas.android.com/apk/res/android"android:layout_width="match_parent"android:layout_height="match_parent"><solid android:color="#55FFFFFF"/><cornersandroid:bottomLeftRadius="25dp"android:bottomRightRadius="25dp"android:topLeftRadius="25dp"android:topRightRadius="25dp"/></shape>

edit_login.xml

<?xml version="1.0" encoding="utf-8"?>
<selector xmlns:android="http://schemas.android.com/apk/res/android"android:layout_width="match_parent"android:layout_height="match_parent"><item android:state_enabled="false"android:drawable="@drawable/login_input"/><item android:state_focused="true"android:drawable="@drawable/input_over"/></selector>
