1、简述

TX2开发板系统默认串口有ttyS0（调试口）、ttyTHS1、ttyTHS2、ttyTHS3，通过修改设备树文件，可以新增三个串口。

2、设备树

设备树中关于串口部分的描述

2.1 基础配置

注意：在这里状态都配置成禁止（status = “disabled”;）
在设备树描述文件tegra186-quill-common.dtsi中，根据需要配置成使能（status = “okay”;）

sources/hardware/nvidia/soc/t18x/kernel-dts/tegra186-soc/tegra186-soc-uart.dtsi

/*tegra186-soc-uart.dtsi: Tegra186 soc dtsi file for UART instances*/
/ {uarta: serial@3100000 {compatible = "nvidia,tegra20-uart";#stream-id-cells = <1>;reg = <0x0 0x03100000 0x0 0x40>;reg-shift = <2>;interrupts = <0 TEGRA186_IRQ_UARTA 0x04>;nvidia,memory-clients = <14>;dmas = <&gpcdma 8>, <&gpcdma 8>;dma-names = "rx", "tx";clocks = <&tegra_car TEGRA186_CLK_UARTA>,<&tegra_car TEGRA186_CLK_PLLP_OUT0>;clock-names = "serial", "parent";resets = <&tegra_car TEGRA186_RESET_UARTA>;reset-names = "serial";status = "disabled";nvidia,adjust-baud-rates = <115200 115200 100>;};uartb: serial@3110000 {compatible = "nvidia,tegra186-hsuart";#stream-id-cells = <1>;reg = <0x0 0x03110000 0x0 0x40>;reg-shift = <2>;interrupts = <0 TEGRA186_IRQ_UARTB 0x04>;nvidia,memory-clients = <14>;dmas = <&gpcdma 9>, <&gpcdma 9>;dma-names = "rx", "tx";clocks = <&tegra_car TEGRA186_CLK_UARTB>,<&tegra_car TEGRA186_CLK_PLLP_OUT0>;clock-names = "serial", "parent";resets = <&tegra_car TEGRA186_RESET_UARTB>;reset-names = "serial";status = "disabled";nvidia,adjust-baud-rates = <115200 115200 100>;};uartc: serial@c280000 {compatible = "nvidia,tegra186-hsuart";#stream-id-cells = <1>;reg = <0x0 0xc280000 0x0 0x40>;reg-shift = <2>;interrupts = <0 TEGRA186_IRQ_UARTC 0x04>;nvidia,memory-clients = <14>;dmas = <&gpcdma 3>, <&gpcdma 3>;dma-names = "rx", "tx";clocks = <&tegra_car TEGRA186_CLK_UARTC>,<&tegra_car TEGRA186_CLK_PLLP_OUT0>;clock-names = "serial", "parent";resets = <&tegra_car TEGRA186_RESET_UARTC>;reset-names = "serial";status = "disabled";nvidia,adjust-baud-rates = <115200 115200 100>;};uartd: serial@3130000 {compatible = "nvidia,tegra186-hsuart";#stream-id-cells = <1>;reg = <0x0 0x03130000 0x0 0x40>;reg-shift = <2>;interrupts = <0 TEGRA186_IRQ_UARTD 0x04>;nvidia,memory-clients = <14>;dmas = <&gpcdma 19>, <&gpcdma 19>;dma-names = "rx", "tx";clocks = <&tegra_car TEGRA186_CLK_UARTD>,<&tegra_car TEGRA186_CLK_PLLP_OUT0>;clock-names = "serial", "parent";resets = <&tegra_car TEGRA186_RESET_UARTD>;reset-names = "serial";status = "disabled";nvidia,adjust-baud-rates = <115200 115200 100>;};uarte: serial@3140000 {compatible = "nvidia,tegra186-hsuart";#stream-id-cells = <1>;reg = <0x0 0x03140000 0x0 0x40>;reg-shift = <2>;interrupts = <0 TEGRA186_IRQ_UARTE 0x04>;nvidia,memory-clients = <14>;dmas = <&gpcdma 20>, <&gpcdma 20>;dma-names = "rx", "tx";clocks = <&tegra_car TEGRA186_CLK_UARTE>,<&tegra_car TEGRA186_CLK_PLLP_OUT0>;clock-names = "serial", "parent";resets = <&tegra_car TEGRA186_RESET_UARTE>;reset-names = "serial";status = "disabled";nvidia,adjust-baud-rates = <115200 115200 100>;};uartf: serial@3150000 {compatible = "nvidia,tegra186-hsuart";#stream-id-cells = <1>;reg = <0x0 0x03150000 0x0 0x40>;reg-shift = <2>;interrupts = <0 TEGRA186_IRQ_UARTF 0x04>;nvidia,memory-clients = <14>;dmas = <&gpcdma 12>, <&gpcdma 12>;dma-names = "rx", "tx";clocks = <&tegra_car TEGRA186_CLK_UARTF>,<&tegra_car TEGRA186_CLK_PLLP_OUT0>;clock-names = "serial", "parent";resets = <&tegra_car TEGRA186_RESET_UARTF>;reset-names = "serial";status = "disabled";nvidia,adjust-baud-rates = <115200 115200 100>;};uartg: serial@c290000 {compatible = "nvidia,tegra186-hsuart";#stream-id-cells = <1>;reg = <0x0 0xc290000 0x0 0x40>;reg-shift = <2>;interrupts = <0 TEGRA186_IRQ_UARTG 0x04>;nvidia,memory-clients = <14>;dmas = <&gpcdma 2>, <&gpcdma 2>;dma-names = "rx", "tx";clocks = <&tegra_car TEGRA186_CLK_UARTG>,<&tegra_car TEGRA186_CLK_PLLP_OUT0>;clock-names = "serial", "parent";resets = <&tegra_car TEGRA186_RESET_UARTG>;reset-names = "serial";status = "disabled";nvidia,adjust-baud-rates = <115200 115200 100>;};combined-uart {compatible = "nvidia,tegra186-combined-uart";reg = <0x0 0x3c10000 0x0 0x4   /* TOP0_HSP_SM_0_1_BASE */0x0 0xc168000 0x0 0x4       /* AON_HSP_SM_1_BASE */0x0 0x3c00000 0x0 0x1000>; /* TOP0_HSP_COMMON_BASE */interrupts = <0 120 0x04>;status = "okay";};
};

2.2 别名定义

aliases {serial0 = &uarta;serial1 = &uartb;serial2 = &uartc;serial3 = &uartd;serial4 = &uarte;serial5 = &uartf;serial6 = &uartg;

2.3 中断配置

sources/hardware/nvidia/soc/t18x/kernel-include/dt-bindings/interrupt/tegra186-irq.h

#define TEGRA186_IRQ_UARTA			112
#define TEGRA186_IRQ_UARTB			113
#define TEGRA186_IRQ_UARTC			114
#define TEGRA186_IRQ_UARTD			115
#define TEGRA186_IRQ_UARTE			116
#define TEGRA186_IRQ_UARTF			117
#define TEGRA186_IRQ_UARTG			118

2.4 时钟配置

sources/hardware/nvidia/soc/t18x/kernel-dts/tegra186-soc/tegra186-soc-base.dtsitegra_car: clock@5000000 {compatible = "nvidia,tegra18x-car";reg = <0x0 0x05000000 0x0 0x01000000>;#clock-cells = <1>;#reset-cells = <1>;status = "disabled";
};

#define TEGRA186_CLK_UARTA 55
#define TEGRA186_CLK_UARTB 56
#define TEGRA186_CLK_UARTC 215
#define TEGRA186_CLK_UARTD 77
#define TEGRA186_CLK_UARTE 194
#define TEGRA186_CLK_UARTF 195
#define TEGRA186_CLK_UARTG 216#define TEGRA186_CLK_PLLP_OUT0 269

nvidia/soc/t18x/kernel-include/dt-bindings/reset/tegra186-reset.h:

#define TEGRA186_RESET_UARTA			47
#define TEGRA186_RESET_UARTB			48
#define TEGRA186_RESET_UARTC			49
#define TEGRA186_RESET_UARTD			50
#define TEGRA186_RESET_UARTE			132
#define TEGRA186_RESET_UARTF			111
#define TEGRA186_RESET_UARTG			112

2.5 默认串口配置

sources/hardware/nvidia/platform/t18x/common/kernel-dts/t18x-common-platforms/tegra186-quill-common.dtsi

  serial@3100000 {compatible = "nvidia,tegra20-uart", "nvidia,tegra186-hsuart";console-port;sqa-automation-port;status = "okay";};serial@3110000 {compatible = "nvidia,tegra186-hsuart";status = "okay";};serial@c280000 {compatible = "nvidia,tegra186-hsuart";status = "okay";};serial@3130000 {compatible = "nvidia,tegra186-hsuart";dma-names = "tx";status = "okay";};

2.6 添加串口

添加串口ttyTHS4、ttyTHS5、ttyTHS6，注意：ttyTHS4、ttyTHS5的引脚是和其它复用的，尽量别用
sources/hardware/nvidia/platform/t18x/common/kernel-dts/t18x-common-platforms/tegra186-quill-common.dtsi ：

  serial@3140000 {compatible = "nvidia,tegra186-hsuart";dma-names = "tx";status = "okay";};serial@3150000 {compatible = "nvidia,tegra186-hsuart";dma-names = "tx";status = "okay";};serial@c290000 {compatible = "nvidia,tegra186-hsuart";dma-names = "tx";status = "okay";};

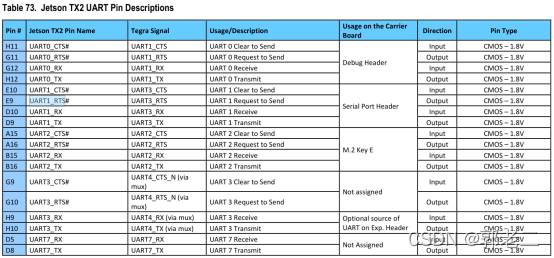

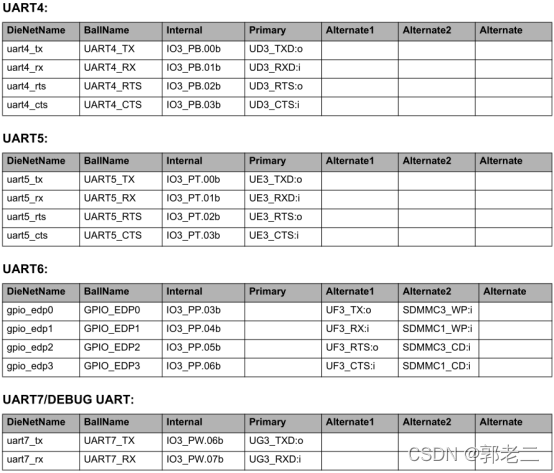

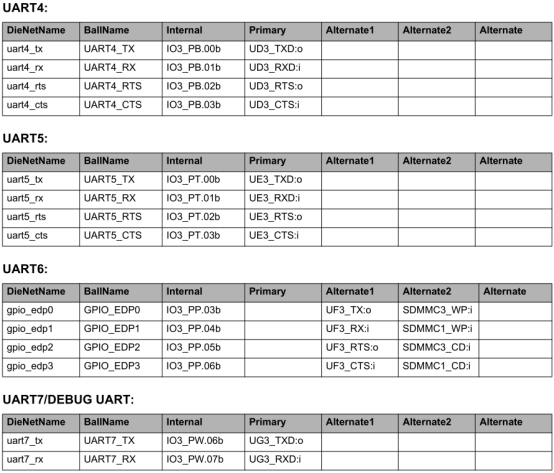

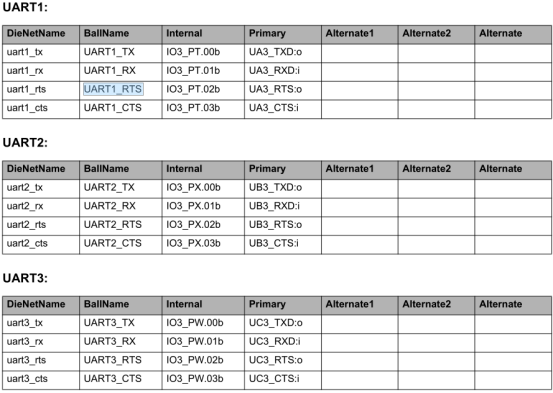

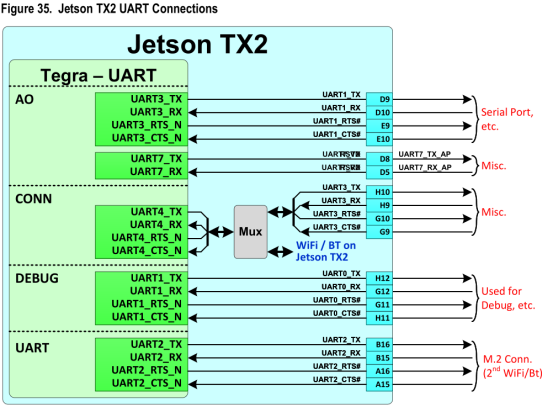

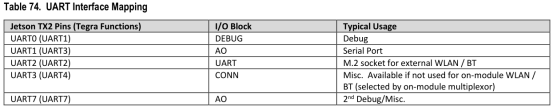

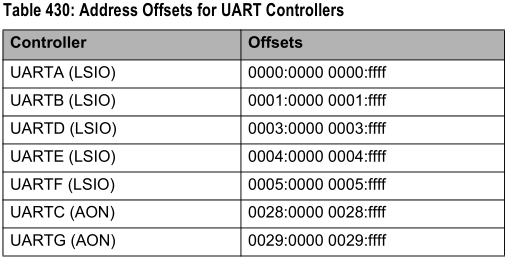

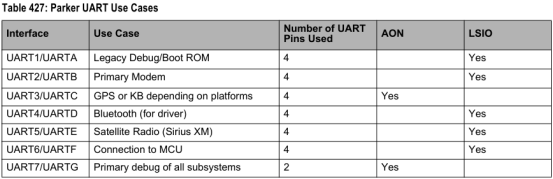

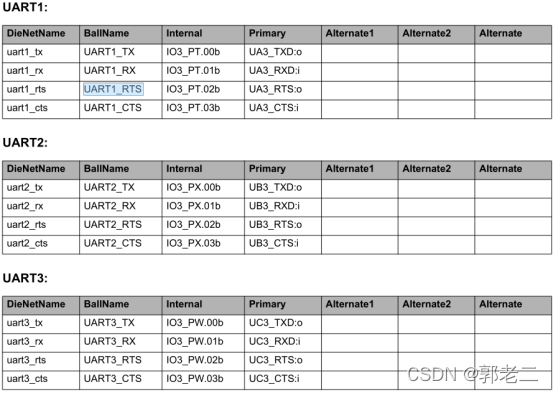

3、引脚

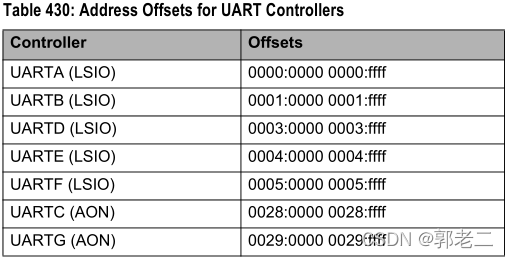

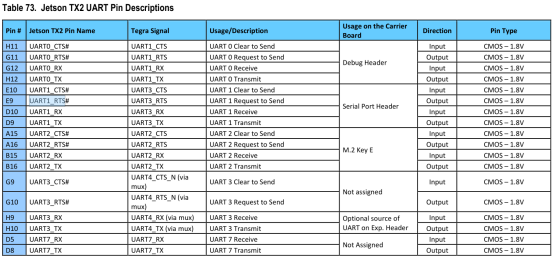

相关手册查询记录：

4、系统中关于串口的信息

4.1 设备挂载信息

root@tegra-ubuntu:/sys/bus/platform/devices# ls *serial -l
lrwxrwxrwx 1 root root 0 3月 21 14:35 3100000.serial -> …/…/…/devices/3100000.serial
lrwxrwxrwx 1 root root 0 3月 21 14:35 3110000.serial -> …/…/…/devices/3110000.serial
lrwxrwxrwx 1 root root 0 3月 21 14:35 3130000.serial -> …/…/…/devices/3130000.serial
lrwxrwxrwx 1 root root 0 3月 21 14:35 c280000.serial -> …/…/…/devices/c280000.serial

4.2 地址和设备文件名的对应关系

/sys/devices/3100000.serial/tty/ttyS0
/sys/devices/3110000.serial/tty/ttyTHS1
/sys/devices/c280000.serial/tty/ttyTHS2
/sys/devices/3130000.serial/tty/ttyTHS3

4.3 查看ttyS0

root@tegra-ubuntu:/sys/devices/3100000.serial/tty/ttyS0# ls
close_delay  closing_wait  custom_divisor  dev  device  flags  iomem_base  iomem_reg_shift  io_type  irq  line  port  power  rt_flush  rx_trig_bytes  subsystem  type  uartclk  uevent  xmit_fifo_size
# cat close_delay // 关闭端口时的等待时间
50
# cat closing_wait // 关闭前输出发送的延迟
3000
# cat custom_divisor
0
# cat dev
4:64
# cat flags // 用户TTY标志(ASYNC_)
0xB9000000
# cat iomem_base
0x3100000
# cat iomem_reg_shift
2
# cat io_type
2
# cat irq
37
# cat line
0
# cat port
0x0
# cat rt_flush
0
# cat rx_trig_bytes
4
# cat type
20
# cat uartclk
408000000
# cat uevent
MAJOR=4
MINOR=64
DEVNAME=ttyS0
# cat xmit_fifo_size
32

4.4 查看ttyTHS1

root@tegra-ubuntu:/sys/devices/3110000.serial/tty/ttyTHS1# ls
close_delay  closing_wait  custom_divisor  dev  device  flags  iomem_base  iomem_reg_shift  io_type  irq  line  port  power  rt_flush  subsystem  type  uartclk  uevent  xmit_fifo_size
# cat close_delay
50
# cat closing_wait
3000
# cat custom_divisor
0
# cat dev
238:1
# cat flags
0x0
# cat iomem_base
0x3110000
# cat iomem_reg_shift
2
# cat io_type
3
# cat irq
38
# cat line
1
# cat port
0x0
# cat rt_flush
0
# cat type
20
# cat uartclk
0
# cat uevent
MAJOR=238
MINOR=1
DEVNAME=ttyTHS1
# cat xmit_fifo_size
32

4.5 查看ttyTHS2

root@tegra-ubuntu:/sys/devices/c280000.serial/tty/ttyTHS2# ls
close_delay  closing_wait  custom_divisor  dev  device  flags  iomem_base  iomem_reg_shift  io_type  irq  line  port  power  rt_flush  subsystem  type  uartclk  uevent  xmit_fifo_size
# cat close_delay
50
# cat closing_wait
3000
# cat custom_divisor
0
# cat dev
238:2
# cat flags
0x0
# cat iomem_base
0xC280000
# cat iomem_reg_shift
2
# cat io_type
3
# cat irq
39
# cat line
2
# cat port
0x0
# cat rt_flush
0
# cat type
20
# cat uartclk
0
# cat uevent
MAJOR=238
MINOR=2
DEVNAME=ttyTHS2
# cat xmit_fifo_size
32

4.6 查看ttyTHS3

root@tegra-ubuntu:/sys/devices/3130000.serial/tty/ttyTHS3# ls
close_delay  closing_wait  custom_divisor  dev  device  flags  hci0  iomem_base  iomem_reg_shift  io_type  irq  line  port  power  rt_flush  subsystem  type  uartclk  uevent  xmit_fifo_size
# cat close_delay
50
# cat closing_wait
3000
# cat custom_divisor
0
# cat dev
238:3
# cat flags
0x0
# cat iomem_base
0x3130000
# cat iomem_reg_shift
2
# cat io_type
3
# cat irq
40
# cat line
3
# cat port
0x0
# cat rt_flush
0
# cat type
20
# cat uartclk
0
# cat uevent
MAJOR=238
MINOR=3
DEVNAME=ttyTHS3
# cat xmit_fifo_size
32
