Shiro源码学习之一

一.最基本的使用

1.Maven依赖

        <dependency><groupId>org.apache.shiro</groupId><artifactId>shiro-core</artifactId><version>1.2.4</version></dependency><dependency>  <groupId>org.slf4j</groupId>  <artifactId>slf4j-api</artifactId>  <version>1.7.13</version>  </dependency>  <dependency>  <groupId>org.slf4j</groupId>  <artifactId>slf4j-log4j12</artifactId>  <version>1.7.13</version>  </dependency>

2.配置文件

[users]
user1 = http://blog.csdn.net/unix21
admin1 = 11111

3.调用代码

import org.apache.shiro.SecurityUtils;
import org.apache.shiro.authc.AuthenticationException;
import org.apache.shiro.authc.UsernamePasswordToken;
import org.apache.shiro.config.IniSecurityManagerFactory;
import org.apache.shiro.mgt.SecurityManager;
import org.apache.shiro.subject.Subject;
import org.apache.shiro.util.Factory;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;public class HelloShiro {private static final Logger logger =  LoggerFactory.getLogger(HelloShiro.class);public static void main(String[] args) {// 初始化 SecurityManagerFactory<SecurityManager> factory = new IniSecurityManagerFactory("classpath:shiro.ini");SecurityManager securityManager = factory.getInstance();SecurityUtils.setSecurityManager(securityManager);// 获取当前用户Subject subject = SecurityUtils.getSubject();// 登录UsernamePasswordToken token = new UsernamePasswordToken("user1", "http://blog.csdn.net/unix21");try {subject.login(token);} catch (AuthenticationException ae) {logger.info("登录失败！");return;}logger.info("登录成功！Hello " + subject.getPrincipal());// 注销subject.logout();}
}

参考:Shiro 那点事儿

跟我学Shiro目录贴

二.源码学习

1.SecurityManager

SecurityManager securityManager = factory.getInstance();

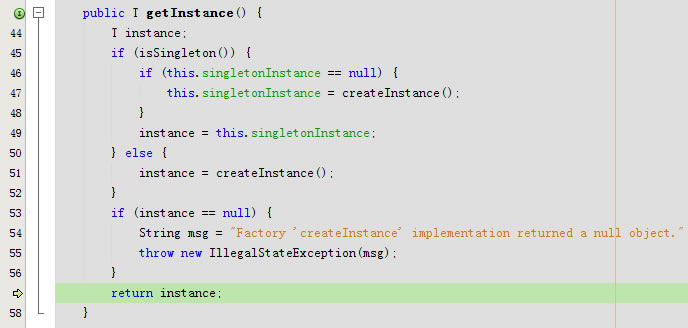

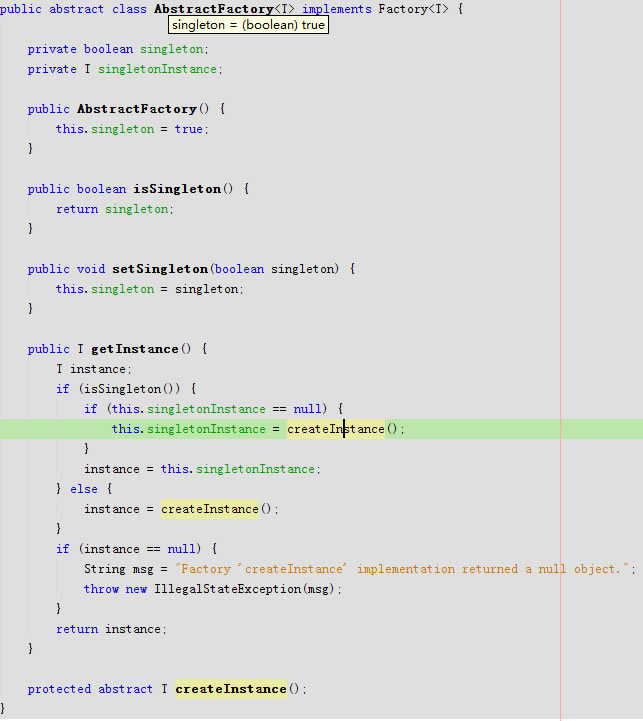

进入public T getInstance()

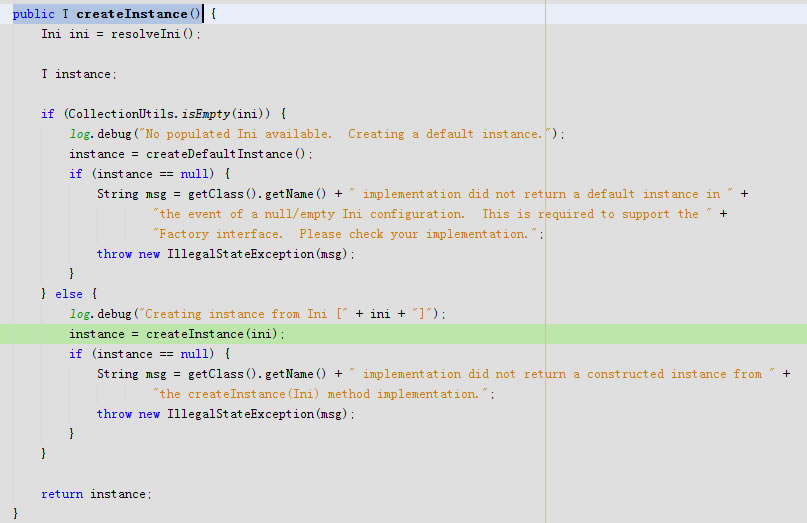

进入public T createInstance()

public T createInstance() {Ini ini = resolveIni();T instance;if (CollectionUtils.isEmpty(ini)) {log.debug("No populated Ini available.  Creating a default instance.");instance = createDefaultInstance();if (instance == null) {String msg = getClass().getName() + " implementation did not return a default instance in " +"the event of a null/empty Ini configuration.  This is required to support the " +"Factory interface.  Please check your implementation.";throw new IllegalStateException(msg);}} else {log.debug("Creating instance from Ini [" + ini + "]");instance = createInstance(ini);if (instance == null) {String msg = getClass().getName() + " implementation did not return a constructed instance from " +"the createInstance(Ini) method implementation.";throw new IllegalStateException(msg);}}return instance;}

进入protected Ini resolveIni()

protected Ini resolveIni() {Ini ini = getIni();if (CollectionUtils.isEmpty(ini)) {log.debug("Null or empty Ini instance.  Falling back to the default {} file.", DEFAULT_INI_RESOURCE_PATH);ini = loadDefaultClassPathIni();}return ini;}

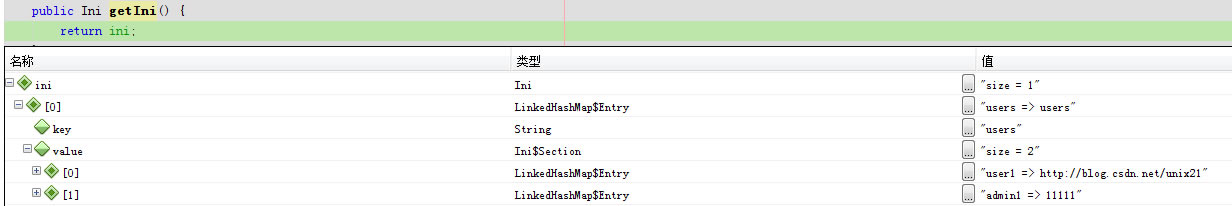

public Ini getIni()

ini是一个自定义的Class

public class Ini implements Map<String, Ini.Section> {private static transient final Logger log = LoggerFactory.getLogger(Ini.class);public static final String DEFAULT_SECTION_NAME = ""; //empty string means the first unnamed sectionpublic static final String DEFAULT_CHARSET_NAME = "UTF-8";public static final String COMMENT_POUND = "#";public static final String COMMENT_SEMICOLON = ";";public static final String SECTION_PREFIX = "[";public static final String SECTION_SUFFIX = "]";protected static final char ESCAPE_TOKEN = '\\';private final Map<String, Section> sections;/*** Creates a new empty {@code Ini} instance.*/public Ini() {this.sections = new LinkedHashMap<String, Section>();}

跳出protected Ini resolveIni()

回到public T createInstance()

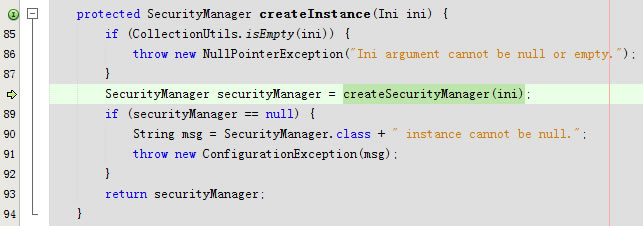

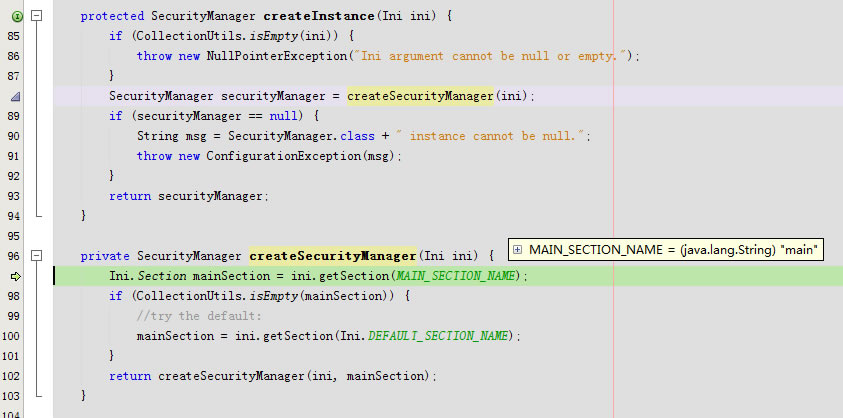

进入protected SecurityManager createInstance(Ini ini)

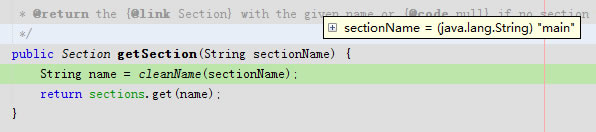

进入public Section getSection(String sectionName)

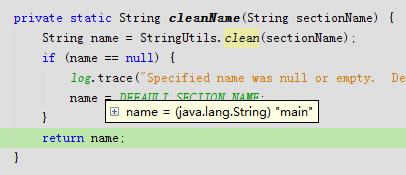

进入private static String cleanName(String sectionName)

private static String cleanName(String sectionName) {String name = StringUtils.clean(sectionName);if (name == null) {log.trace("Specified name was null or empty.  Defaulting to the default section (name = \"\")");name = DEFAULT_SECTION_NAME;}return name;}

org.apache.shiro.util的StringUtils

EMPTY_STRING是StringUtils定义的静态常量

public class StringUtils {public static final String EMPTY_STRING = "";public static final char DEFAULT_DELIMITER_CHAR = ',';public static final char DEFAULT_QUOTE_CHAR = '"';

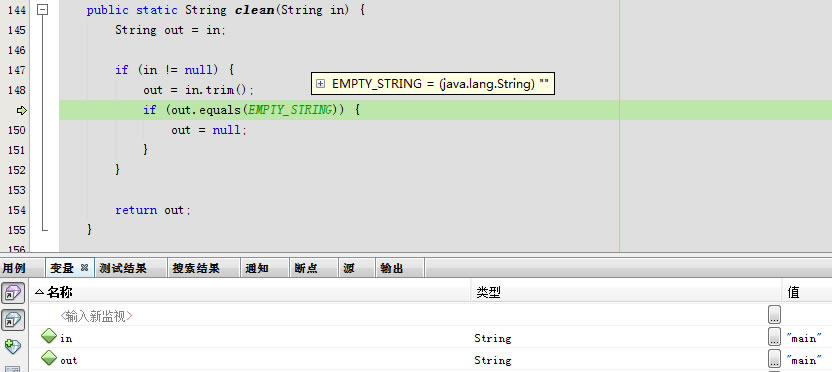

out返回"main"

private static String cleanName(String sectionName)返回"main"

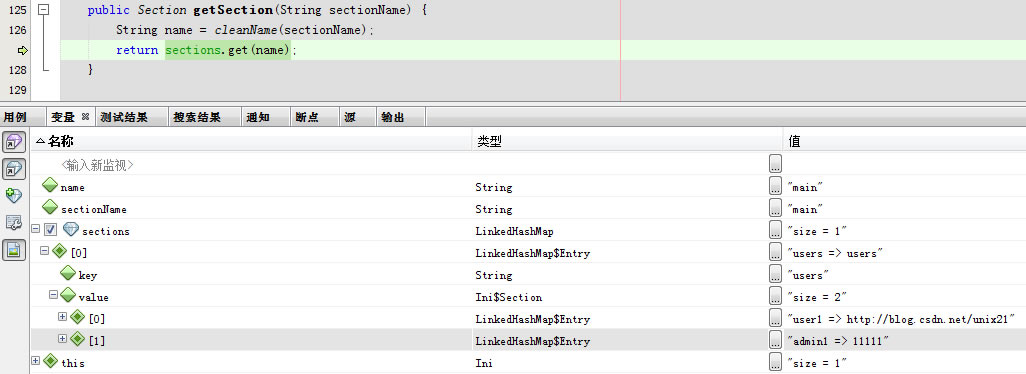

回到public Section getSection(String sectionName)

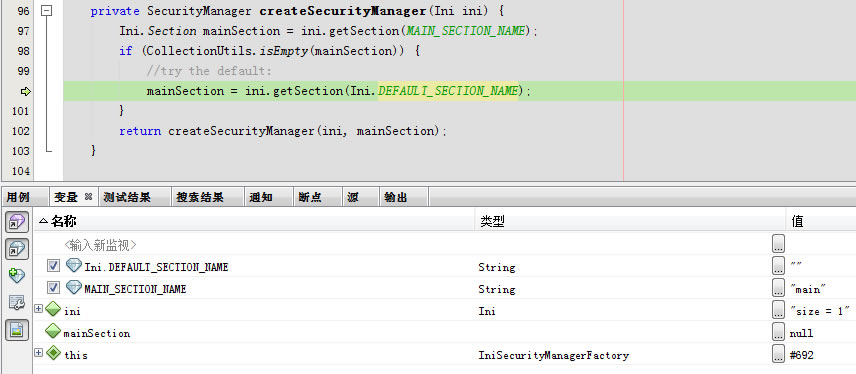

ini.getSection返回null回到private SecurityManager createSecurityManager(Ini ini)

又到public Section getSection(String sectionName)返回null

public Section getSection(String sectionName) {String name = cleanName(sectionName);return sections.get(name);}

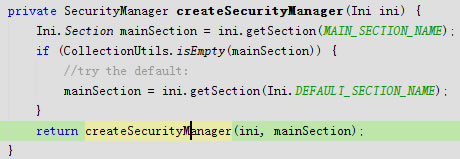

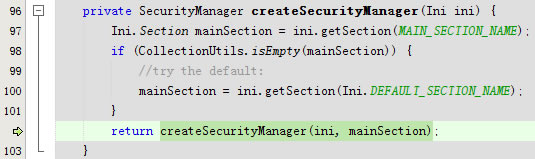

回到private SecurityManager createSecurityManager(Ini ini)

进入createSecurityManager

@SuppressWarnings({"unchecked"})private SecurityManager createSecurityManager(Ini ini, Ini.Section mainSection) {Map<String, ?> defaults = createDefaults(ini, mainSection);Map<String, ?> objects = buildInstances(mainSection, defaults);SecurityManager securityManager = getSecurityManagerBean();boolean autoApplyRealms = isAutoApplyRealms(securityManager);if (autoApplyRealms) {//realms and realm factory might have been created - pull them out first so we can//initialize the securityManager:Collection<Realm> realms = getRealms(objects);//set them on the SecurityManagerif (!CollectionUtils.isEmpty(realms)) {applyRealmsToSecurityManager(realms, securityManager);}}return securityManager;}

进入createDefaults

    protected Map<String, ?> createDefaults(Ini ini, Ini.Section mainSection) {Map<String, Object> defaults = new LinkedHashMap<String, Object>();SecurityManager securityManager = createDefaultInstance();defaults.put(SECURITY_MANAGER_NAME, securityManager);if (shouldImplicitlyCreateRealm(ini)) {Realm realm = createRealm(ini);if (realm != null) {defaults.put(INI_REALM_NAME, realm);}}return defaults;}

protected SecurityManager createDefaultInstance() {return new DefaultSecurityManager();}

public DefaultSecurityManager() {super();this.subjectFactory = new DefaultSubjectFactory();this.subjectDAO = new DefaultSubjectDAO();}

public SessionsSecurityManager() {super();this.sessionManager = new DefaultSessionManager();applyCacheManagerToSessionManager();}

public AuthorizingSecurityManager() {super();this.authorizer = new ModularRealmAuthorizer();}

public AuthenticatingSecurityManager() {super();this.authenticator = new ModularRealmAuthenticator();}

public RealmSecurityManager() {super();}

最终是个空方法

public abstract class CachingSecurityManager implements SecurityManager, Destroyable, CacheManagerAware {private CacheManager cacheManager;public CachingSecurityManager() {}

...之后

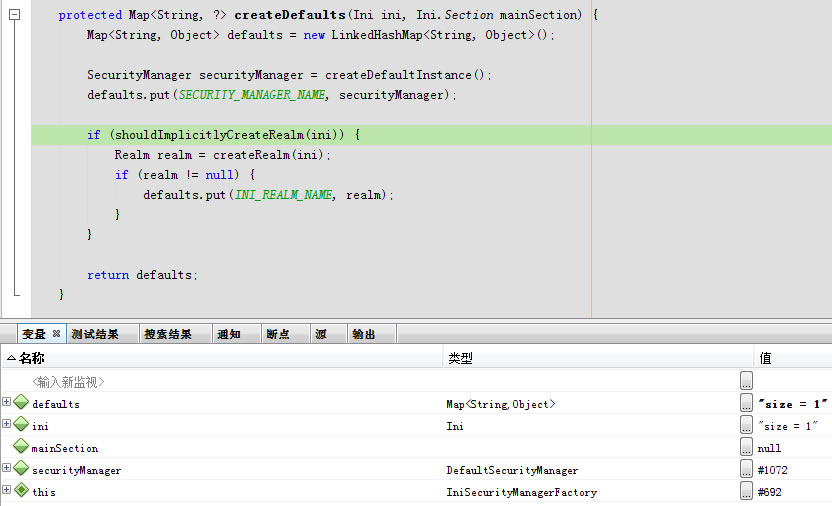

回到createDefaults

protected boolean shouldImplicitlyCreateRealm(Ini ini)

protected boolean shouldImplicitlyCreateRealm(Ini ini) {return !CollectionUtils.isEmpty(ini) &&(!CollectionUtils.isEmpty(ini.getSection(IniRealm.ROLES_SECTION_NAME)) ||!CollectionUtils.isEmpty(ini.getSection(IniRealm.USERS_SECTION_NAME)));}

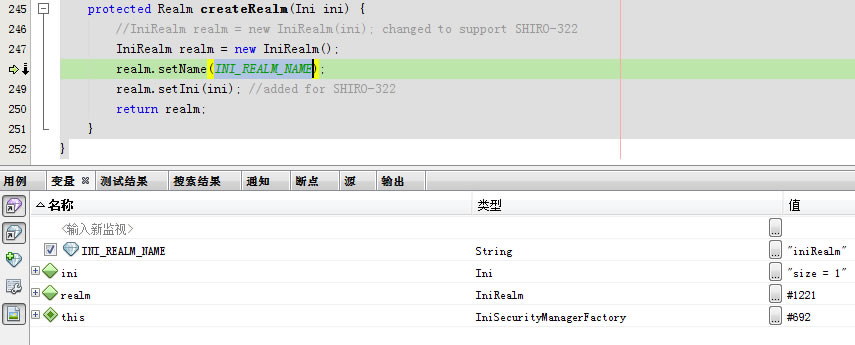

回到createDefaults进入createRealm

IniRealm声明

public class IniRealm extends TextConfigurationRealm {public static final String USERS_SECTION_NAME = "users";public static final String ROLES_SECTION_NAME = "roles";private static transient final Logger log = LoggerFactory.getLogger(IniRealm.class);private String resourcePath;private Ini ini; //reference added in 1.2 for SHIRO-322public IniRealm() {super();}

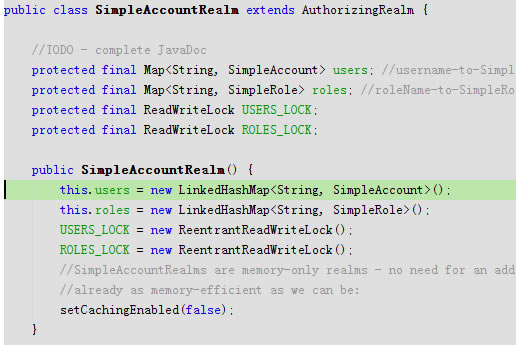

调用super()的super()

实例化LinkedHashMap和读写锁ReadWriteLock

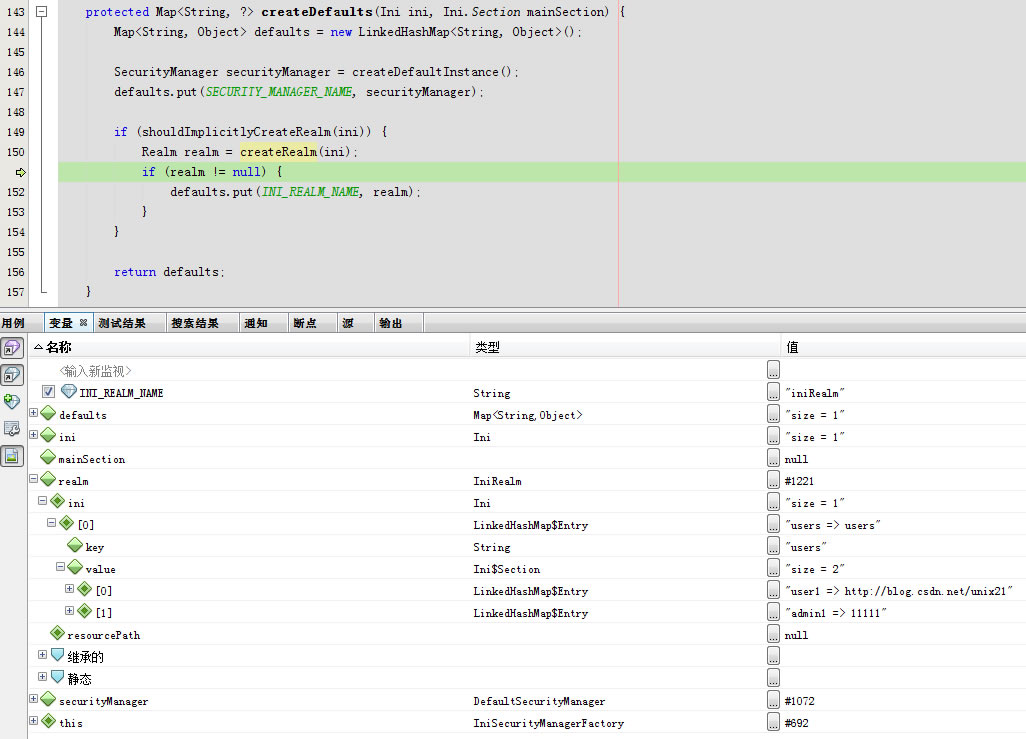

回到createRealm

回到createDefaults

回到createSecurityManager

进入buildInstances

private Map<String, ?> buildInstances(Ini.Section section, Map<String, ?> defaults) {this.builder = new ReflectionBuilder(defaults);return this.builder.buildObjects(section);}

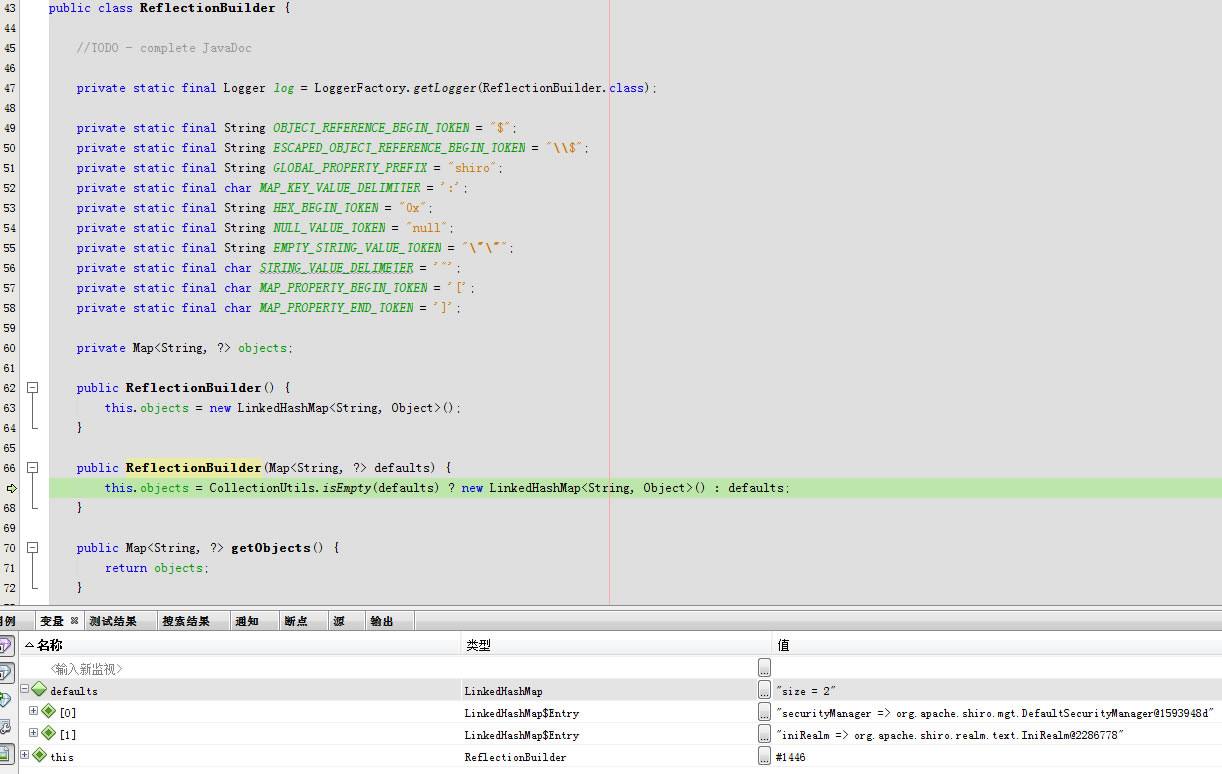

进入ReflectionBuilder

这行代码很简洁，defaults不为空，所以this.objects指向defaults的引用

this.objects = CollectionUtils.isEmpty(defaults) ? new LinkedHashMap<String, Object>() : defaults;

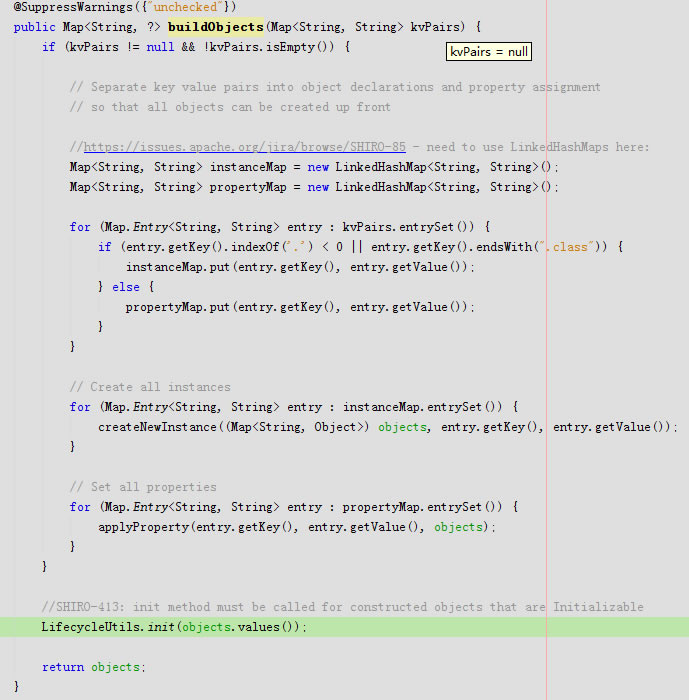

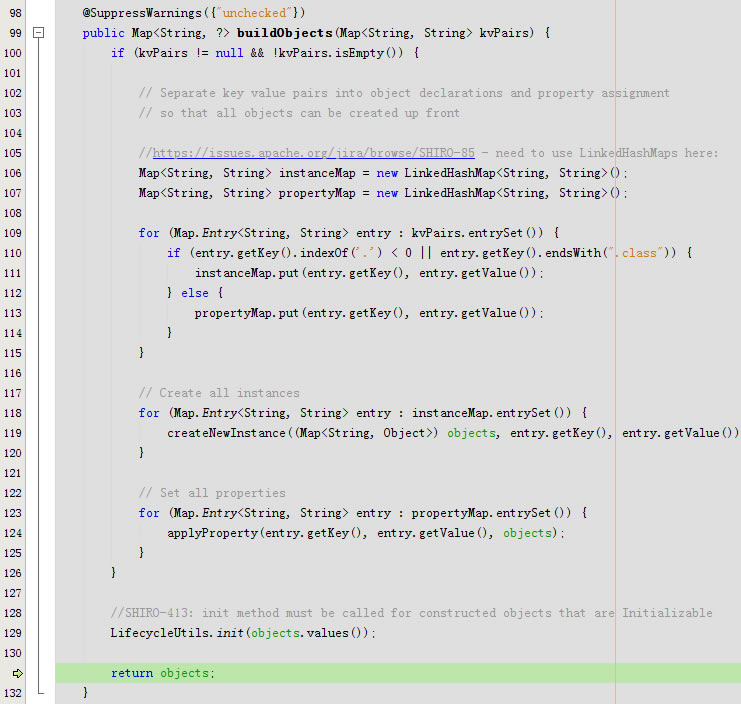

进入buildObjects 因为kvPairs为null所以直接跳到LifecycleUtils.init(objects.values());

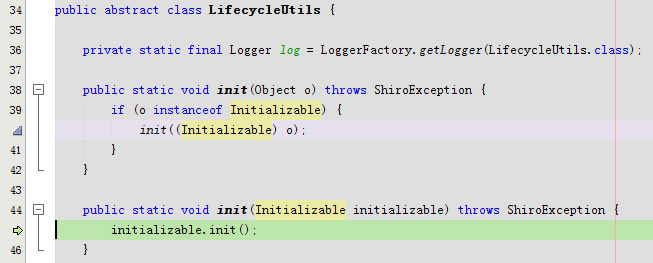

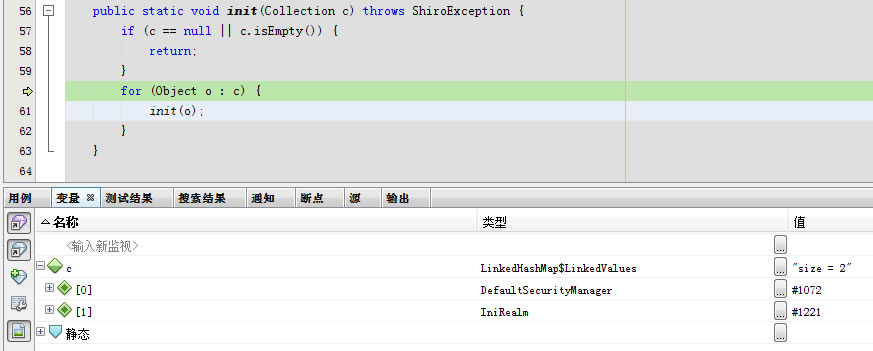

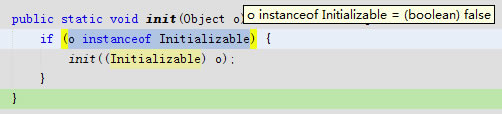

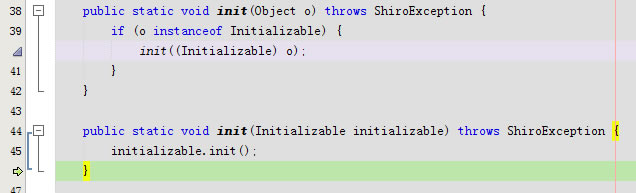

再跳到public static void init(Object o)，判断对象不能Initializable

第二次又进入这次对象是可以Initializable

进入

public final void init() {//trigger obtaining the authorization cache if possiblegetAvailableAuthenticationCache();onInit();}

进入getAvailableAuthenticationCache

private Cache<Object, AuthenticationInfo> getAvailableAuthenticationCache() {Cache<Object, AuthenticationInfo> cache = getAuthenticationCache();boolean authcCachingEnabled = isAuthenticationCachingEnabled();if (cache == null && authcCachingEnabled) {cache = getAuthenticationCacheLazy();}return cache;}

返回是null

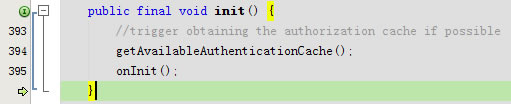

回到

public final void init() {//trigger obtaining the authorization cache if possiblegetAvailableAuthenticationCache();onInit();}

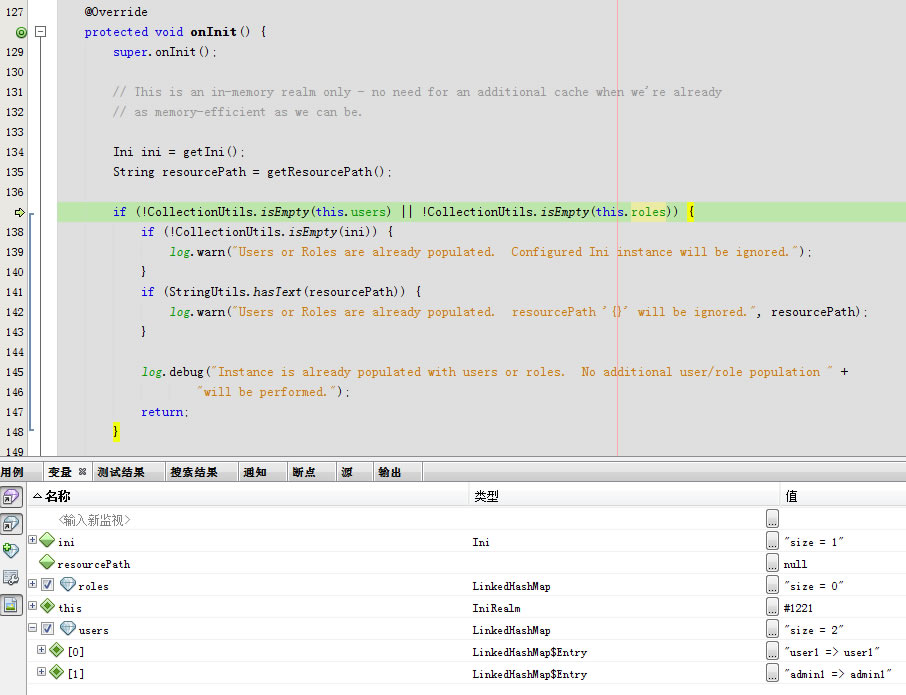

进入onInit()

@Overrideprotected void onInit() {super.onInit();// This is an in-memory realm only - no need for an additional cache when we're already// as memory-efficient as we can be.Ini ini = getIni();String resourcePath = getResourcePath();if (!CollectionUtils.isEmpty(this.users) || !CollectionUtils.isEmpty(this.roles)) {if (!CollectionUtils.isEmpty(ini)) {log.warn("Users or Roles are already populated.  Configured Ini instance will be ignored.");}if (StringUtils.hasText(resourcePath)) {log.warn("Users or Roles are already populated.  resourcePath '{}' will be ignored.", resourcePath);}log.debug("Instance is already populated with users or roles.  No additional user/role population " +"will be performed.");return;}if (CollectionUtils.isEmpty(ini)) {log.debug("No INI instance configuration present.  Checking resourcePath...");if (StringUtils.hasText(resourcePath)) {log.debug("Resource path {} defined.  Creating INI instance.", resourcePath);ini = Ini.fromResourcePath(resourcePath);if (!CollectionUtils.isEmpty(ini)) {setIni(ini);}}}if (CollectionUtils.isEmpty(ini)) {String msg = "Ini instance and/or resourcePath resulted in null or empty Ini configuration.  Cannot " +"load account data.";throw new IllegalStateException(msg);}processDefinitions(ini);}

super.onInit()也就是protected void onInit()

@Overrideprotected void onInit() {super.onInit();processDefinitions();}

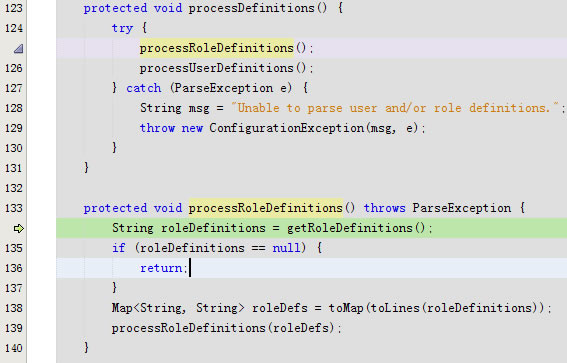

processDefinitions调用processRoleDefinitions()，roleDefinitions为null直接返回到processDefinitions

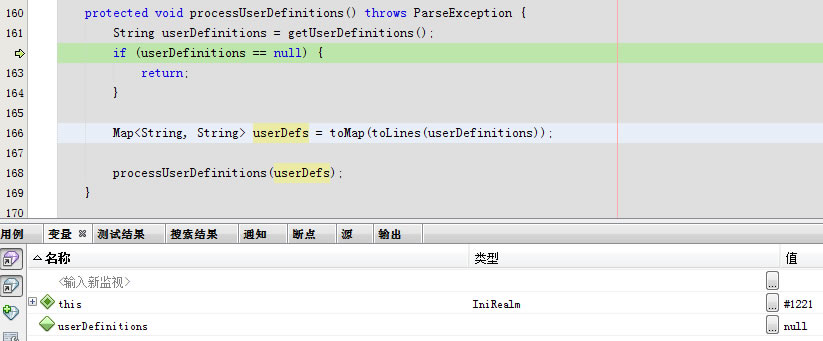

processUserDefinitions中userDefinitions也是null直接return回processDefinitions了

回到onInit()

返回

返回

回到buildObjects返回objects

回到buildInstances

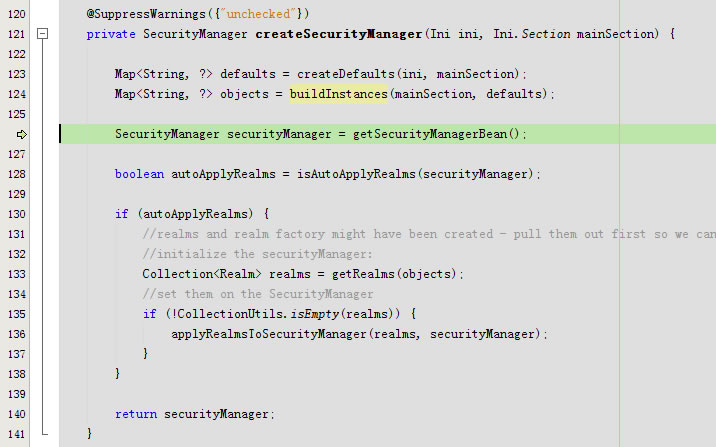

回到createSecurityManager

private SecurityManager getSecurityManagerBean() {return builder.getBean(SECURITY_MANAGER_NAME, SecurityManager.class);}

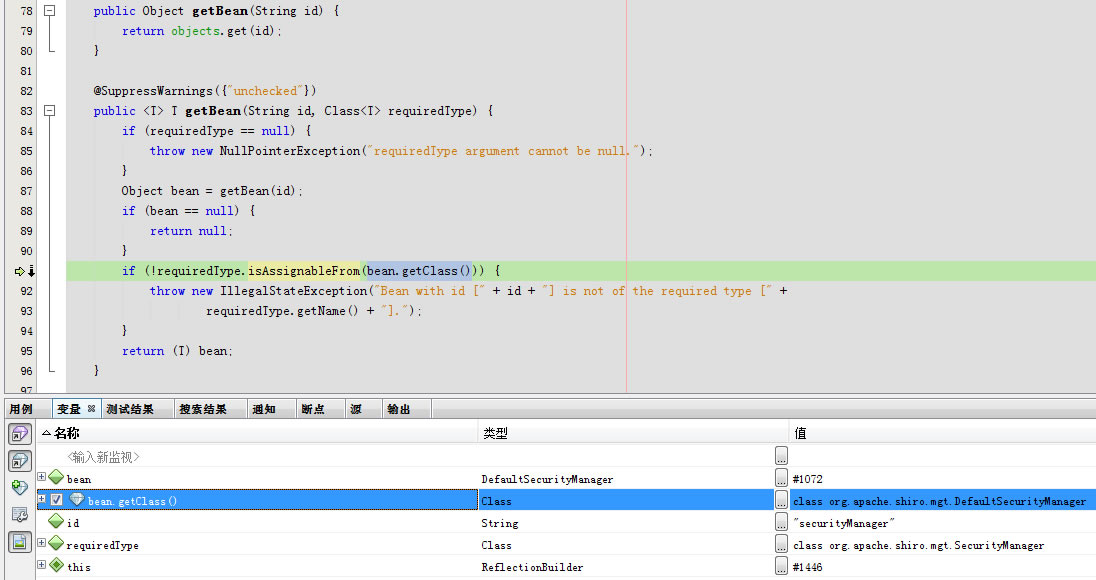

进入org.apache.shiro.config的public class ReflectionBuilder

instanceof运算符 只被用于对象引用变量，检查左边的被测试对象 是不是 右边类或接口的 实例化。如果被测对象是null值，则测试结果总是false。
Class类的isInstance(Object obj)方法，obj是被测试的对象，如果obj是调用这个方法的class或接口 的实例，则返回true。这个方法是instanceof运算符的动态等价。
Class类的isAssignableFrom(Class cls)方法，如果调用这个方法的class或接口 与 参数cls表示的类或接口相同，或者是参数cls表示的类或接口的父类，则返回true。

instanceof, isinstance,isAssignableFrom的区别

回到createSecurityManager

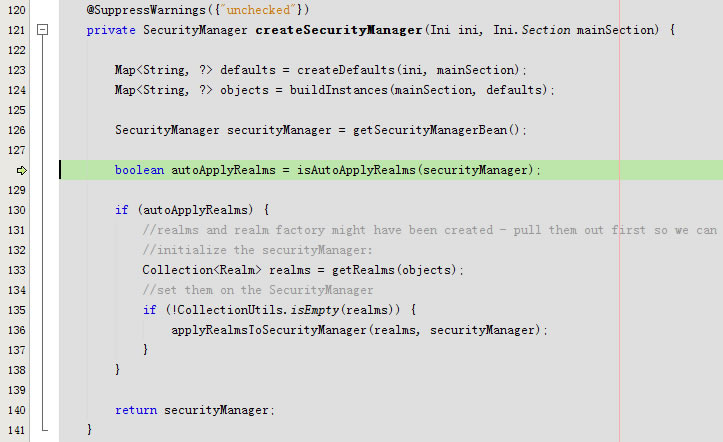

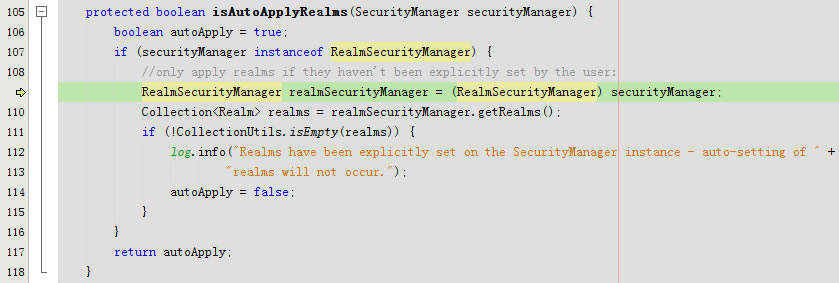

进入isAutoApplyRealms

realms为null，返回autoApply为true

回到createSecurityManager

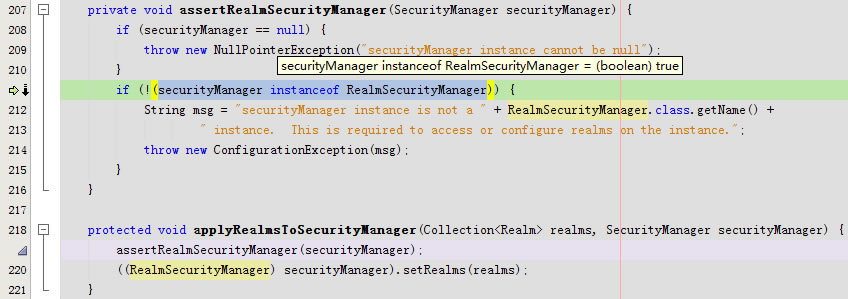

进入applyRealmsToSecurityManager

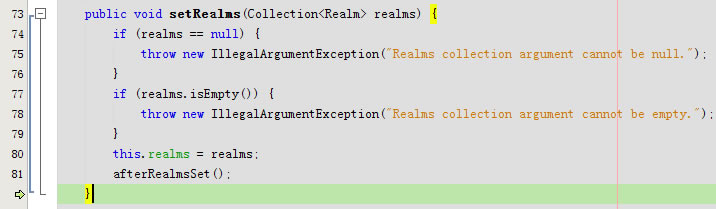

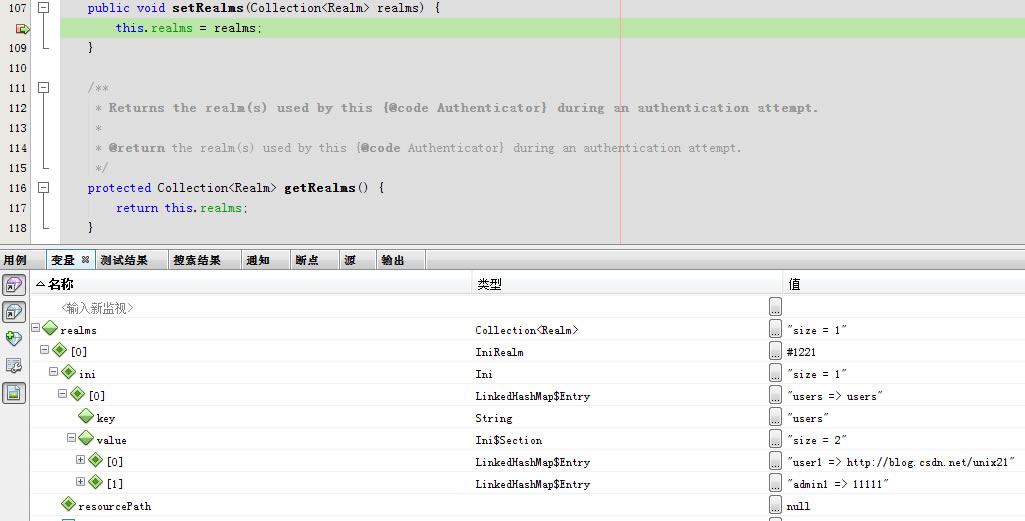

再调用setRealms

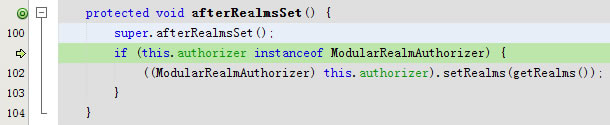

回到protected void afterRealmsSet()

回到setRealms

回到

回到

回到

回到

回到

回到

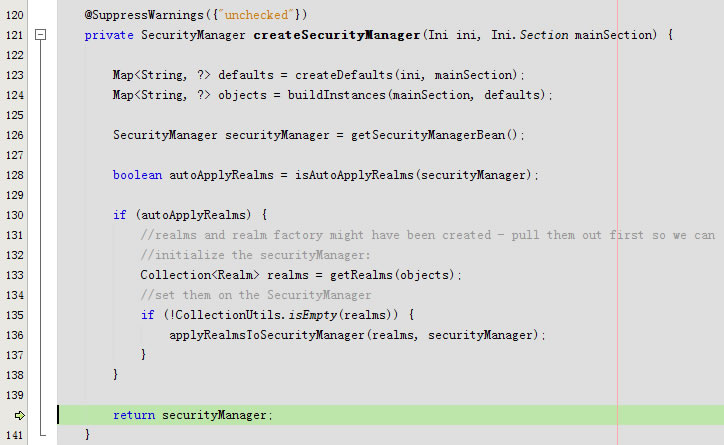

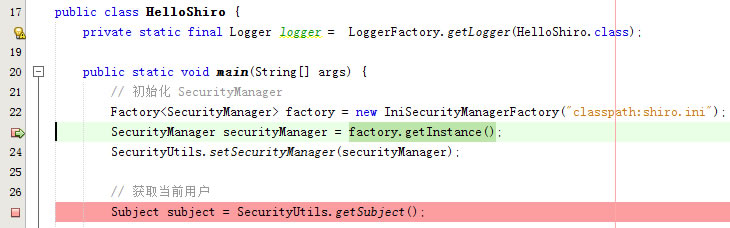

回到最外层调用函数

至此，SecurityManager securityManager = factory.getInstance();才完成。

2.Subject

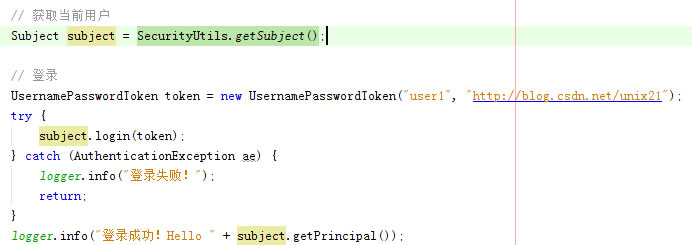

// 获取当前用户Subject subject = SecurityUtils.getSubject();

public static Subject getSubject() {Subject subject = ThreadContext.getSubject();if (subject == null) {subject = (new Subject.Builder()).buildSubject();ThreadContext.bind(subject);}return subject;}

进入org.apache.shiro.util的public abstract class ThreadContext

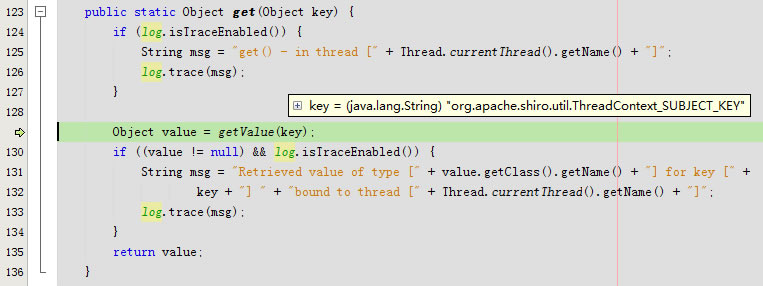

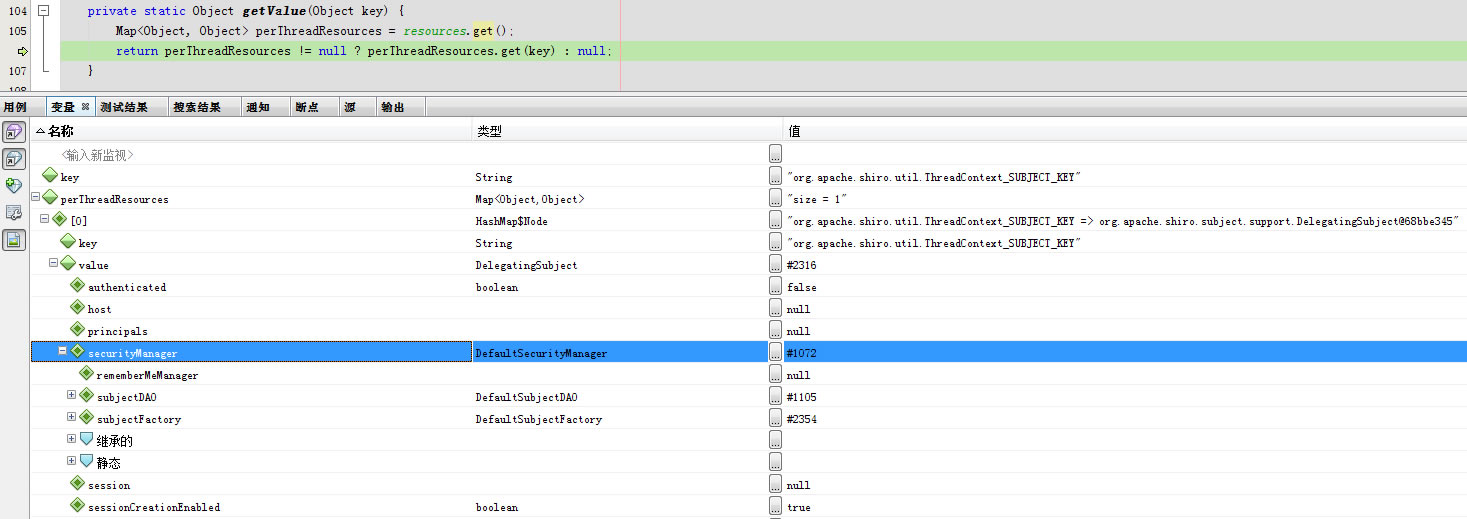

getValue

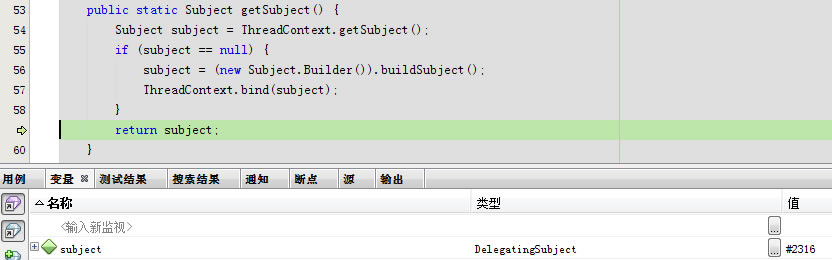

回到public static Subject getSubject()

回到最外层

3.UsernamePasswordToken

UsernamePasswordToken token = new UsernamePasswordToken("user1", "http://blog.csdn.net/unix21");

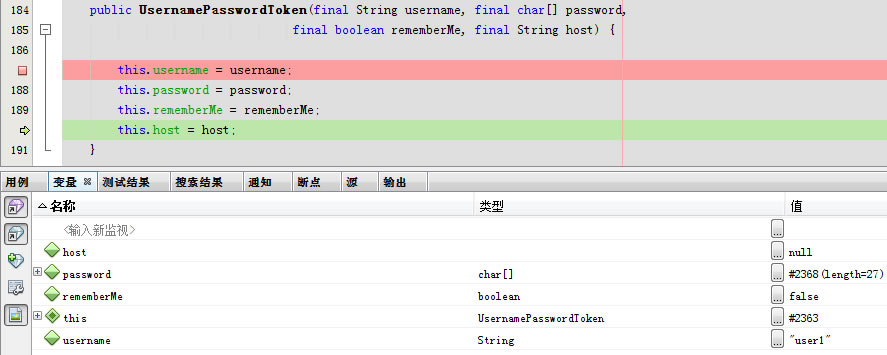

调用构造函数

private声明

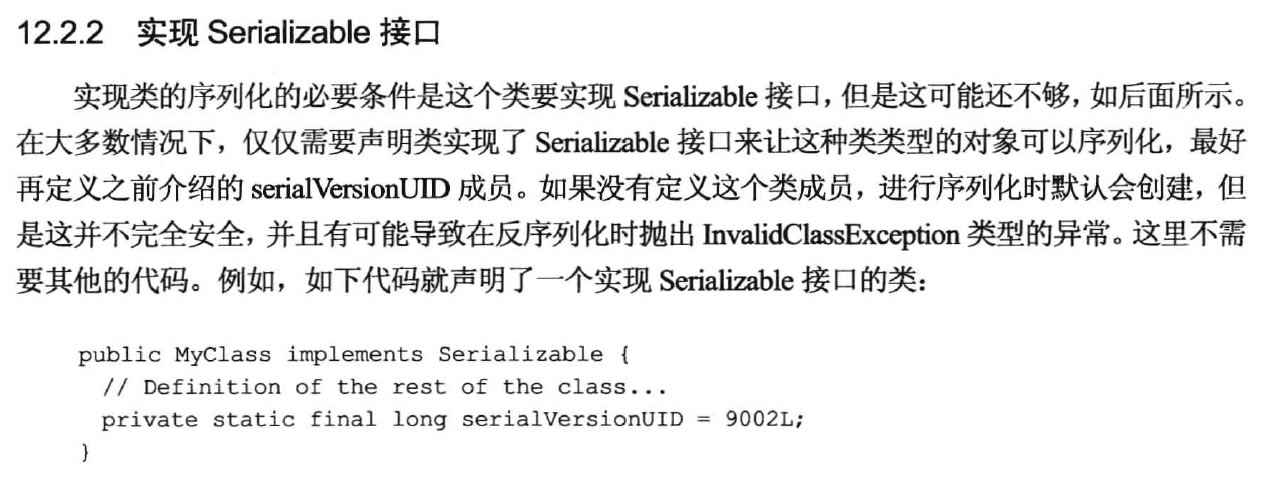

public class UsernamePasswordToken implements HostAuthenticationToken, RememberMeAuthenticationToken {
private String username;
private char[] password;
private boolean rememberMe = false;
private String host;
...

HostAuthenticationToken接口定义

public interface HostAuthenticationToken extends AuthenticationToken {
String getHost();
}public interface AuthenticationToken extends Serializable {
Object getPrincipal();
Object getCredentials();
}

Shiro源码学习之二
