对称加密算法AES之GCM模式简介及在OpenSSL中使用举例

AES(Advanced Encryption Standard)即高级加密标准，由美国国家标准和技术协会(NIST)于2000年公布，它是一种对称加密算法。关于AES的更多介绍可以参考：https://blog.csdn.net/fengbingchun/article/details/100139524

AES的GCM(Galois/Counter Mode)模式本质上是AES的CTR模式(计数器模式)加上GMAC(Galois Message Authentication Code, 伽罗华消息认证码)进行哈希计算的一种组合模式。GCM可以提供对消息的加密和完整性校验，另外，它还可以提供附加消息的完整性校验。

OpenSSL中的EVP接口支持执行经过身份验证的加密和解密的功能，以及将未加密的关联数据附加到消息的选项。这种带有关联数据的身份验证加密(AEAD, Authenticated-Encryption with Associated-Data)方案通过对数据进行加密来提供机密性，并通过在加密数据上创建MAC标签来提供真实性保证。

Key：对称密钥，它的长度可以为128、192、256bits，用来加密明文的密码。

IV(Initialisation Vector)：初始向量，它的选取必须随机。通常以明文的形式和密文一起传送。它的作用和MD5的”加盐”有些类似，目的是防止同样的明文块，始终加密成同样的密文块。

AAD(Additional Authenticated Data)：附加身份验证数据。AAD数据不需要加密，通常以明文形式与密文一起传递给接收者。

Mac tag(MAC标签)：将确保数据在传输和存储过程中不会被意外更改或恶意篡改。该标签随后在解密操作期间使用，以确保密文和AAD未被篡改。在加密时，Mac tag由明文、密钥Key、IV、AAD共同产生。

以下为测试代码：

namespace {static const unsigned char gcm_key[] = { // 32 bytes, Key0xee, 0xbc, 0x1f, 0x57, 0x48, 0x7f, 0x51, 0x92, 0x1c, 0x04, 0x65, 0x66,0x5f, 0x8a, 0xe6, 0xd1, 0x65, 0x8b, 0xb2, 0x6d, 0xe6, 0xf8, 0xa0, 0x69,0xa3, 0x52, 0x02, 0x93, 0xa5, 0x72, 0x07, 0x8f
};static const unsigned char gcm_iv[] = { // 12 bytes, IV(Initialisation Vector)0x99, 0xaa, 0x3e, 0x68, 0xed, 0x81, 0x73, 0xa0, 0xee, 0xd0, 0x66, 0x84
};// Additional Authenticated Data(AAD): it is not encrypted, and is typically passed to the recipient in plaintext along with the ciphertext
static const unsigned char gcm_aad[] = { // 16 bytes0x4d, 0x23, 0xc3, 0xce, 0xc3, 0x34, 0xb4, 0x9b, 0xdb, 0x37, 0x0c, 0x43,0x7f, 0xec, 0x78, 0xde
};std::unique_ptr<unsigned char[]> aes_gcm_encrypt(const char* plaintext, int& length, unsigned char* tag)
{EVP_CIPHER_CTX* ctx = EVP_CIPHER_CTX_new();// Set cipher type and modeEVP_EncryptInit_ex(ctx, EVP_aes_256_gcm(), nullptr, nullptr, nullptr);// Set IV length if default 96 bits is not appropriateEVP_CIPHER_CTX_ctrl(ctx, EVP_CTRL_AEAD_SET_IVLEN, sizeof(gcm_iv), nullptr);// Initialise key and IVEVP_EncryptInit_ex(ctx, nullptr, nullptr, gcm_key, gcm_iv);// Zero or more calls to specify any AADint outlen;EVP_EncryptUpdate(ctx, nullptr, &outlen, gcm_aad, sizeof(gcm_aad));unsigned char outbuf[1024];// Encrypt plaintextEVP_EncryptUpdate(ctx, outbuf, &outlen, (const unsigned char*)plaintext, strlen(plaintext));length = outlen;std::unique_ptr<unsigned char[]> ciphertext(new unsigned char[length]);memcpy(ciphertext.get(), outbuf, length);// Finalise: note get no output for GCMEVP_EncryptFinal_ex(ctx, outbuf, &outlen);// Get tagEVP_CIPHER_CTX_ctrl(ctx, EVP_CTRL_AEAD_GET_TAG, 16, outbuf);memcpy(tag, outbuf, 16);// Clean upEVP_CIPHER_CTX_free(ctx);return ciphertext;
}std::unique_ptr<unsigned char[]> aes_gcm_decrypt(const unsigned char* ciphertext, int& length, const unsigned char* tag)
{EVP_CIPHER_CTX* ctx = EVP_CIPHER_CTX_new();// Select cipherEVP_DecryptInit_ex(ctx, EVP_aes_256_gcm(), nullptr, nullptr, nullptr);// Set IV length, omit for 96 bitsEVP_CIPHER_CTX_ctrl(ctx, EVP_CTRL_AEAD_SET_IVLEN, sizeof(gcm_iv), nullptr);// Specify key and IVEVP_DecryptInit_ex(ctx, nullptr, nullptr, gcm_key, gcm_iv);int outlen;// Zero or more calls to specify any AADEVP_DecryptUpdate(ctx, nullptr, &outlen, gcm_aad, sizeof(gcm_aad));unsigned char outbuf[1024];// Decrypt plaintextEVP_DecryptUpdate(ctx, outbuf, &outlen, ciphertext, length);// Output decrypted blocklength = outlen;std::unique_ptr<unsigned char[]> plaintext(new unsigned char[length]);memcpy(plaintext.get(), outbuf, length);// Set expected tag valueEVP_CIPHER_CTX_ctrl(ctx, EVP_CTRL_AEAD_SET_TAG, 16, (void*)tag);// Finalise: note get no output for GCMint rv = EVP_DecryptFinal_ex(ctx, outbuf, &outlen);// Print out return value. If this is not successful authentication failed and plaintext is not trustworthy.fprintf(stdout, "Tag Verify %s\n", rv > 0 ? "Successful!" : "Failed!");EVP_CIPHER_CTX_free(ctx);return plaintext;
}} // namespaceint test_openssl_aes_gcm()
{/* reference:https://github.com/openssl/openssl/blob/master/demos/evp/aesgcm.chttps://wiki.openssl.org/index.php/EVP_Authenticated_Encryption_and_Decryption*/fprintf(stdout, "Start AES GCM 256 Encrypt:\n");const char* plaintext = "1234567890ABCDEFG!@#$%^&*()_+[]{};':,.<>/?|";fprintf(stdout, "src plaintext: %s, length: %d\n", plaintext, strlen(plaintext));int length = 0;std::unique_ptr<unsigned char[]> tag(new unsigned char[16]);std::unique_ptr<unsigned char[]> ciphertext = aes_gcm_encrypt(plaintext, length, tag.get());fprintf(stdout, "length: %d, ciphertext: ", length);for (int i = 0; i < length; ++i)fprintf(stdout, "%02x ", ciphertext.get()[i]);fprintf(stdout, "\nTag: ");for (int i = 0; i < 16; ++i)fprintf(stdout, "%02x ", tag.get()[i]);fprintf(stdout, "\n");fprintf(stdout, "\nStart AES GCM 256 Decrypt:\n");std::unique_ptr<unsigned char[]> result = aes_gcm_decrypt(ciphertext.get(), length, tag.get());fprintf(stdout, "length: %d, decrypted plaintext: ", length);for (int i = 0; i < length; ++i)fprintf(stdout, "%c", result.get()[i]);fprintf(stdout, "\n");if (strncmp(plaintext, (const char*)result.get(), length) == 0) {fprintf(stdout, "decrypt success\n");return 0;} else {fprintf(stderr, "decrypt fail\n");return -1;}
}

在Windows上执行结果如下：

以上是在OpenSSL较老的版本1.0.1g上执行的，在最新版1.1.1g上以上代码也同样可以执行。

在Windows上编译1.1.1g版本源码执行命令如下：no-asm选项为不开启汇编模式，编译release则将debug-VC-WIN64A改为VC-WIN64即可。

perl Configure debug-VC-WIN64A no-asm --prefix=D:\DownLoad\openssl\win64_debug
nmake
nmake install

在Linux上编译1.1.1g版本源码执行命令如下：

./config --prefix=/home/sensetime/Downloads/openssl/install
make
make insall

在1.1.1g源码的demos/evp目录下给出了gcm的示例aesgcm.c，这里将以上测试代码新加为aesgcm2.cpp，编译脚本如下：

#! /bin/bashg++ -o test_aesgcm aesgcm.c -L ../../ -lcrypto -lssl -I../../include
g++ -o test_aesgcm2 aesgcm2.cpp -std=c++11 -L ../../ -lcrypto -lssl -I../../includeg++ -o test_aesccm aesccm.c -L ../../ -lcrypto -lssl -I../../include

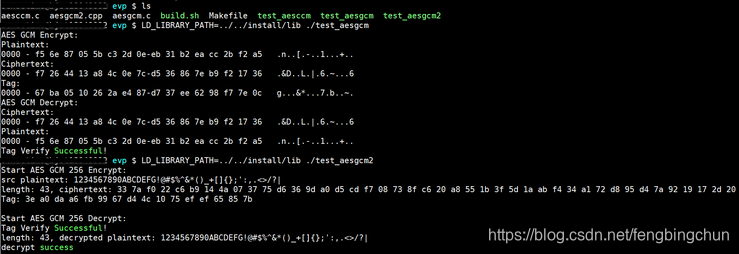

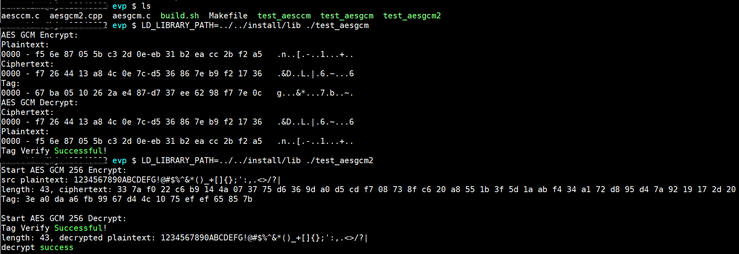

执行结果如下：注意如果在Windows上执行aesgcm2.cpp，需要额外的 #include <openssl/applink.c>

GitHub：https://github.com//fengbingchun/OpenSSL_Test
