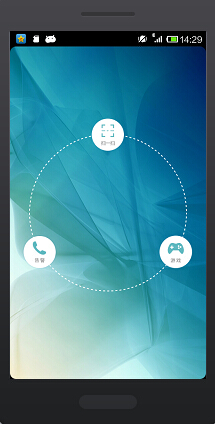

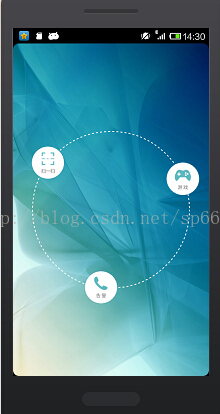

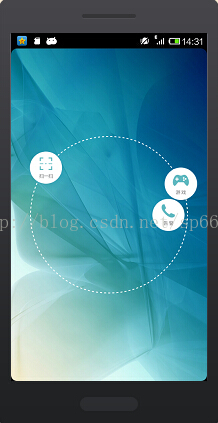

LZ该公司最近接手一个项目，需要写一个圆形旋转菜单，和菜单之间的移动换位支持，我本来以为这样的demo如若互联网是非常。想想你妈妈也帮不了我，空旋转，但它不能改变位置，所以LZ我们只能靠自己摸索。
最后LZ参考代码的在线部分。了一个自己定义的view最终实现了这个看似非常吊。却没有实际意义的功能。
在此贡献出来给广大码农们共享。
话不多说，先上代码：
自己定义view类：
public class RoundSpinView extends View {private Paint mPaint = new Paint();private PaintFlagsDrawFilter pfd;private int startMenu; //菜单的第一张图片的资源id// stone列表private BigStone[] mStones;// 数目private static final int STONE_COUNT = 3;// 圆心坐标private int mPointX = 0, mPointY = 0;// 半径private int mRadius = 0;// 每两个点间隔的角度private int mDegreeDelta;private int menuRadius; // 菜单的半径private int mCur = -1; // 正在被移动的menu;private boolean[] quadrantTouched; //对每一个象限触摸情况的记录// Touch detectionprivate GestureDetector mGestureDetector;private onRoundSpinViewListener mListener; //自己定义事件监听器private final static int TO_ROTATE_BUTTON = 0; //旋转button；private Handler handler = new Handler(){public void handleMessage(Message msg) {switch (msg.what) {case TO_ROTATE_BUTTON:float velocity = Float.parseFloat(msg.obj.toString());rotateButtons(velocity/75);velocity /= 1.0666F;new Thread(new FlingRunnable(velocity)).start();break;default:break;}};};public interface onRoundSpinViewListener{public void onSingleTapUp(int position); //监听每一个菜单的单击事件}public RoundSpinView(Context context,AttributeSet attrs) {super(context,attrs);if(attrs!=null){TypedArray a = getContext().obtainStyledAttributes(attrs,R.styleable.RoundSpinView);startMenu = a.getResourceId(R.styleable.RoundSpinView_menuStart, 0);}pfd = new PaintFlagsDrawFilter(0, Paint.ANTI_ALIAS_FLAG|Paint.FILTER_BITMAP_FLAG); mPaint.setColor(Color.WHITE);mPaint.setStrokeWidth(2);mPaint.setAntiAlias(true); //消除锯齿 mPaint.setStyle(Paint.Style.STROKE); //绘制空心圆 PathEffect effects = new DashPathEffect(new float[]{5,5,5,5},1); mPaint.setPathEffect(effects);quadrantTouched = new boolean[] { false, false, false, false, false };mGestureDetector = new GestureDetector(getContext(),new MyGestureListener());setupStones();}@Overrideprotected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {// TODO Auto-generated method stubsuper.onMeasure(widthMeasureSpec, heightMeasureSpec);mPointX = this.getMeasuredWidth()/2;mPointY = this.getMeasuredHeight()/2;//初始化半径和菜单半径mRadius = mPointX-mPointX/5;menuRadius = (int)(mPointX/5.5);computeCoordinates();}/*** 初始化每一个点*/private void setupStones() {mStones = new BigStone[STONE_COUNT];BigStone stone;int angle = 270;mDegreeDelta = 360 / STONE_COUNT;for (int index = 0; index < STONE_COUNT; index++) {stone = new BigStone();if (angle >= 360) {angle -= 360;}else if(angle < 0){angle += 360;}stone.angle = angle;stone.bitmap = BitmapFactory.decodeResource(getResources(),startMenu + index);angle += mDegreeDelta;mStones[index] = stone;}}/*** 又一次计算每一个点的角度*/private void resetStonesAngle(float x, float y) {int angle = computeCurrentAngle(x, y);Log.d("RoundSpinView", "angle:" + angle);for (int index = 0; index < STONE_COUNT; index++) {mStones[index].angle = angle;angle += mDegreeDelta;}}/*** 计算每一个点的坐标*/private void computeCoordinates() {BigStone stone;for (int index = 0; index < STONE_COUNT; index++) {stone = mStones[index];stone.x = mPointX+ (float) (mRadius * Math.cos(Math.toRadians(stone.angle)));stone.y = mPointY+ (float) (mRadius * Math.sin(Math.toRadians(stone.angle)));}}/*** 计算某点的角度* * @param x* @param y* @return*/private int computeCurrentAngle(float x, float y) {float distance = (float) Math.sqrt(((x - mPointX) * (x - mPointX) + (y - mPointY)* (y - mPointY)));int degree = (int) (Math.acos((x - mPointX) / distance) * 180 / Math.PI);if (y < mPointY) {degree = -degree;}Log.d("RoundSpinView", "x:" + x + ",y:" + y + ",degree:" + degree);return degree;}private double startAngle;@Overridepublic boolean dispatchTouchEvent(MotionEvent event) {// resetStonesAngle(event.getX(), event.getY());// computeCoordinates();// invalidate();int x, y;if (event.getAction() == MotionEvent.ACTION_DOWN) {x = (int) event.getX();y = (int) event.getY();mCur = getInCircle(x, y);if (mCur == -1) {startAngle = computeCurrentAngle(x, y);}} else if (event.getAction() == MotionEvent.ACTION_MOVE) {x = (int) event.getX();y = (int) event.getY();if (mCur != -1) {mStones[mCur].x = x;mStones[mCur].y = y;invalidate();} else {double currentAngle = computeCurrentAngle(x, y);rotateButtons(startAngle - currentAngle);startAngle = currentAngle;}} else if (event.getAction() == MotionEvent.ACTION_UP) {x = (int) event.getX();y = (int) event.getY();if (mCur != -1) {computeCoordinates();int cur = getInCircle(x, y);if (cur != mCur && cur != -1) {int angle = mStones[mCur].angle;mStones[mCur].angle = mStones[cur].angle;mStones[cur].angle = angle;}computeCoordinates();invalidate();mCur = -1;}}// set the touched quadrant to truequadrantTouched[getQuadrant(event.getX() - mPointX,mPointY - event.getY())] = true;mGestureDetector.onTouchEvent(event);return true;}private class MyGestureListener extends SimpleOnGestureListener {@Overridepublic boolean onFling(MotionEvent e1, MotionEvent e2, float velocityX,float velocityY) {// get the quadrant of the start and the end of the flingint q1 = getQuadrant(e1.getX() - mPointX, mPointY - e1.getY());int q2 = getQuadrant(e2.getX() - mPointX, mPointY - e2.getY());// the inversed rotationsif ((q1 == 2 && q2 == 2 && Math.abs(velocityX) < Math.abs(velocityY))|| (q1 == 3 && q2 == 3)|| (q1 == 1 && q2 == 3)|| (q1 == 4 && q2 == 4 && Math.abs(velocityX) > Math.abs(velocityY))|| ((q1 == 2 && q2 == 3) || (q1 == 3 && q2 == 2))|| ((q1 == 3 && q2 == 4) || (q1 == 4 && q2 == 3))|| (q1 == 2 && q2 == 4 && quadrantTouched[3])|| (q1 == 4 && q2 == 2 && quadrantTouched[3])) {// CircleLayout.this.post(new FlingRunnable(-1// * (velocityX + velocityY)));new Thread(new FlingRunnable(velocityX+velocityY)).start();} else {// the normal rotation// CircleLayout.this// .post(new FlingRunnable(velocityX + velocityY));new Thread(new FlingRunnable(-(velocityX+velocityY))).start();}return true;}@Overridepublic boolean onSingleTapUp(MotionEvent e) {int cur = getInCircle((int)e.getX(),(int)e.getY());if(cur!=-1){if(mListener!=null){mListener.onSingleTapUp(cur);}
// Toast.makeText(getContext(), "position:"+cur, 0).show();return true;}return false;}}private class FlingRunnable implements Runnable{private float velocity;public FlingRunnable(float velocity){this.velocity = velocity;}@Overridepublic void run() {// TODO Auto-generated method stubif(Math.abs(velocity)>=200){Message message = Message.obtain();message.what = TO_ROTATE_BUTTON;message.obj = velocity;handler.sendMessage(message);}}}/*** @return The selected quadrant.*/private static int getQuadrant(double x, double y) {if (x >= 0) {return y >= 0 ? 1 : 4;} else {}return y >= 0 ?2 : 3; } /* * 旋转菜单button */ private void rotateButtons(double degree) { for (int i = 0; i < STONE_COUNT; i++) { mStones[i].angle -= degree; if (mStones[i].angle < 0) { mStones[i].angle += 360; }else if(mStones[i].angle >=360){ mStones[i].angle -= 360; } } computeCoordinates(); invalidate(); } @Override public void onDraw(Canvas canvas) { //画一个白色的圆环 canvas.drawCircle(mPointX, mPointY, mRadius, mPaint); //将每一个菜单画出来 for (int index = 0; index < STONE_COUNT; index++) { if (!mStones[index].isVisible) continue; drawInCenter(canvas, mStones[index].bitmap, mStones[index].x, mStones[index].y); } } /** * 把中心点放到中心处 * * @param canvas * @param bitmap * @param left * @param top */ private void drawInCenter(Canvas canvas, Bitmap bitmap, float left, float top) { Rect dst = new Rect(); dst.left = (int) (left - menuRadius); dst.right = (int) (left + menuRadius); dst.top = (int) (top - menuRadius); dst.bottom = (int) (top + menuRadius); canvas.setDrawFilter(pfd); canvas.drawBitmap(bitmap, null, dst, mPaint); } private int getInCircle(int x, int y) { for (int i = 0; i < STONE_COUNT; i++) { BigStone stone = mStones[i]; int mx = (int) stone.x; int my = (int) stone.y; if (((x - mx) * (x - mx) + (y - my) * (y - my)) < menuRadius * menuRadius) { return i; } } return -1; } public void setOnRoundSpinViewListener(onRoundSpinViewListener listener){ this.mListener = listener; } class BigStone { // 图片 Bitmap bitmap; // 角度 int angle; // x坐标 float x; // y坐标 float y; // 是否可见 boolean isVisible = true; } }
layout文件代码：<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"xmlns:app="http://schemas.android.com/apk/res-auto"android:layout_width="match_parent"android:layout_height="match_parent"android:orientation="vertical"><com.example.roundspinviewdemo.view.RoundSpinViewandroid:id="@+id/rsv_test"android:layout_width="match_parent"android:layout_height="match_parent"android:layout_gravity="center"android:background="@drawable/menubkground"app:menuStart="@drawable/menu1" /></LinearLayout>xmlns:app="http://schemas.android.com/apk/res-auto"<?xml version="1.0" encoding="utf-8"?>
<resources><!-- 设置旋转菜单相应的第一张图片 --><declare-styleable name="RoundSpinView"><attr name="menuStart" format="reference" /></declare-styleable>
</resources>
public class MainActivity extends Activity implements onRoundSpinViewListener {private RoundSpinView rsv_test;@Overrideprotected void onCreate(Bundle savedInstanceState) {super.onCreate(savedInstanceState);setContentView(R.layout.activity_main);initView();}private void initView(){rsv_test = (RoundSpinView)this.findViewById(R.id.rsv_test);rsv_test.setOnRoundSpinViewListener(this);}@Overridepublic void onSingleTapUp(int position) {// TODO Auto-generated method stubswitch (position) {case 0:Toast.makeText(MainActivity.this, "place:0", 0).show();break;case 1:Toast.makeText(MainActivity.this, "place:1", 0).show();break;case 2:Toast.makeText(MainActivity.this, "place:2", 0).show();break;default:break;}}}rsv_test.setOnRoundSpinViewListener(this);至此。你的项目就能够拥有看上去非常高大上的旋转换位菜单功能
这里附上此demo相应的资源链接：点击打开链接
