Spring基于xml的案例实践

在数据库中创建一张新的表

create table account(id int primary key auto_increment,name varchar(40),money float
)character set utf8 collate utf8_general_ci;

往表中导入数据

insert into account(name,money) values('aaa',1000);
insert into account(name,money) values('bbb',1000);
insert into account(name,money) values('ccc',1000);

创建Maven项目，导入坐标

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"><modelVersion>4.0.0</modelVersion><groupId>org.example</groupId><artifactId>Spring06</artifactId><version>1.0-SNAPSHOT</version><packaging>jar</packaging><dependencies><dependency><groupId>org.springframework</groupId><artifactId>spring-context</artifactId><version>5.2.8.RELEASE</version></dependency><dependency><groupId>commons-dbutils</groupId><artifactId>commons-dbutils</artifactId><version>1.7</version></dependency><dependency><groupId>mysql</groupId><artifactId>mysql-connector-java</artifactId><version>8.0.20</version></dependency><dependency><groupId>com.mchange</groupId><artifactId>c3p0</artifactId><version>0.9.5.5</version></dependency><dependency><groupId>junit</groupId><artifactId>junit</artifactId><version>4.13</version><scope>test</scope></dependency></dependencies></project>

配置文件

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://www.springframework.org/schema/beanshttp://www.springframework.org/schema/beans/spring-beans.xsd"><!--配置Service--><bean id="accountService" class="com.service.impl.AccountServiceImpl"><!--注入dao对象--><property name="accountDao" ref="accountDao"/></bean><bean id="accountDao" class="com.dao.impl.AccountDaoImpl"><!--注入QueryRunner--><property name="runner" ref="runner"/></bean><!--配置QueryRunner对象--><bean id="runner" class="org.apache.commons.dbutils.QueryRunner" scope="prototype"><!--注入数据源--><constructor-arg name="ds" ref="dataSource"/></bean><!--配置数据源--><bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource"><!--配置数据库的必备信息--><property name="driverClass" value="com.mysql.cj.jdbc.Driver"/><property name="jdbcUrl" value="jdbc:mysql://localhost:3306/spring1"/><property name="user" value="root"/><property name="password" value="123456"/></bean>
</beans>

我们可以看到，QueryRunner对象这里我们使用了多例操作，这是因为单例操作同一个数据可能会造成线程安全问题，所以我们使用多例操作。

创建Dao接口

package com.dao;import com.domain.Account;import java.util.List;/*** 账户的持久层接口*/
public interface AccountDao {/*** 查询所有* @return*/List<Account> findAllAccount();/*** 查询一个* @return*/Account findAccountById(Integer accountId);/*** 保存* @param account*/void saveAccount(Account account);/*** 更新* @param account*/void updateAccount(Account account);/*** 删除* @param accountId*/void deleteAccount(Integer accountId);}

创建Dao实体类

package com.dao.impl;import com.dao.AccountDao;
import com.domain.Account;
import org.apache.commons.dbutils.QueryRunner;
import org.apache.commons.dbutils.handlers.BeanHandler;
import org.apache.commons.dbutils.handlers.BeanListHandler;import java.util.List;/*** 账户的持久层实现类*/
public class AccountDaoImpl implements AccountDao {private QueryRunner runner;public void setRunner(QueryRunner runner) {this.runner = runner;}public List<Account> findAllAccount() {try{return runner.query("select * from account",new BeanListHandler<Account>(Account.class));}catch (Exception e){throw new RuntimeException(e);}}public Account findAccountById(Integer accountId) {try{return runner.query("select * from account where id = ? ",new BeanHandler<Account>(Account.class),accountId);}catch (Exception e){throw new RuntimeException(e);}}public void saveAccount(Account account) {try{runner.update("insert into account(name,money) value(?,?)",account.getName(),account.getMoney());}catch (Exception e){throw new RuntimeException(e);}}public void updateAccount(Account account) {try{runner.update("update account set name=?,money=? where id=?",account.getName(),account.getMoney(),account.getId());}catch (Exception e){throw new RuntimeException(e);}}public void deleteAccount(Integer accountId) {try{runner.update("delete from account where id=?",accountId);}catch (Exception e){throw new RuntimeException(e);}}
}

创建Service接口

package com.service;import com.domain.Account;import java.util.List;/*** 账户的业务层接口*/
public interface AccountService {/*** 查询所有* @return*/List<Account> findAllAccount();/*** 查询一个* @return*/Account findAccountById(Integer accountId);/*** 保存* @param account*/void saveAccount(Account account);/*** 更新* @param account*/void updateAccount(Account account);/*** 删除* @param accountId*/void deleteAccount(Integer accountId);
}

创建Service实体类

package com.service.impl;import com.dao.AccountDao;
import com.domain.Account;
import com.service.AccountService;import java.util.List;/*** 账户的业务层实现类*/
public class AccountServiceImpl implements AccountService {private AccountDao accountDao;public void setAccountDao(AccountDao accountDao) {this.accountDao = accountDao;}public List<Account> findAllAccount() {return accountDao.findAllAccount();}public Account findAccountById(Integer accountId) {return accountDao.findAccountById(accountId);}public void saveAccount(Account account) {accountDao.saveAccount(account);}public void updateAccount(Account account) {accountDao.updateAccount(account);}public void deleteAccount(Integer accountId) {accountDao.deleteAccount(accountId);}
}

domain实体类

package com.domain;import java.io.Serializable;/*** 账户的实体类*/
public class Account implements Serializable {private Integer id;private String name;private Float money;public Integer getId() {return id;}public void setId(Integer id) {this.id = id;}public String getName() {return name;}public void setName(String name) {this.name = name;}public Float getMoney() {return money;}public void setMoney(Float money) {this.money = money;}@Overridepublic String toString() {return "Account{" +"id=" + id +", name='" + name + '\'' +", money=" + money +'}';}
}

测试类

package com.test;import com.domain.Account;
import com.service.AccountService;
import org.junit.Test;
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;import java.util.List;/*** 使用Junit单元测试，测试我们的配置*/
public class AccountServiceTest {@Testpublic void testFindAll(){//1.获取容器ApplicationContext applicationContext = new ClassPathXmlApplicationContext("applicationContext.xml");//2.得到业务层对象AccountService accountService = applicationContext.getBean("accountService",AccountService.class);List<Account> accounts = accountService.findAllAccount();for (Account account:accounts){System.out.println(account);}}@Testpublic void testFindOne(){ApplicationContext applicationContext = new ClassPathXmlApplicationContext("applicationContext.xml");AccountService accountService = applicationContext.getBean("accountService",AccountService.class);Account account = accountService.findAccountById(1);System.out.println(account);}@Testpublic void testSave(){ApplicationContext applicationContext = new ClassPathXmlApplicationContext("applicationContext.xml");AccountService accountService = applicationContext.getBean("accountService",AccountService.class);Account account = new Account();account.setName("test");account.setMoney(12345f);accountService.saveAccount(account);}@Testpublic void testUpdate(){ApplicationContext applicationContext = new ClassPathXmlApplicationContext("applicationContext.xml");AccountService accountService = applicationContext.getBean("accountService",AccountService.class);Account account = accountService.findAccountById(4);account.setName("test1");account.setMoney(1111f);accountService.updateAccount(account);}@Testpublic void testDelete(){ApplicationContext applicationContext = new ClassPathXmlApplicationContext("applicationContext.xml");AccountService accountService = applicationContext.getBean("accountService",AccountService.class);accountService.deleteAccount(1);}
}

项目视图

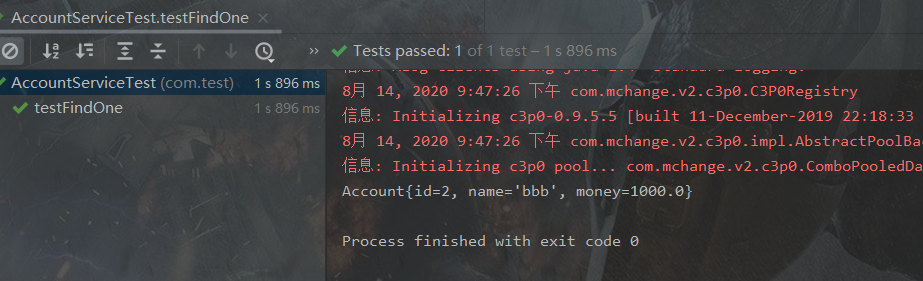

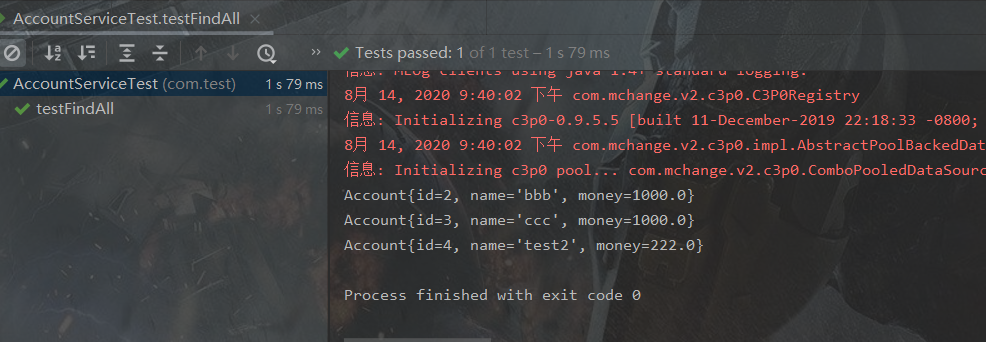

部分运行结果：

Spring基于注解的案例实践

基于注解的很简单，只要修改一下上面的几个文件就可以了

修改配置文件

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xmlns:context="http://www.springframework.org/schema/context"xsi:schemaLocation="http://www.springframework.org/schema/beanshttp://www.springframework.org/schema/beans/spring-beans.xsdhttp://www.springframework.org/schema/contexthttp://www.springframework.org/schema/context/spring-context.xsd"><!--告知Spring在创建容器时要扫描的包--><context:component-scan base-package="com"/><!--配置QueryRunner对象--><bean id="runner" class="org.apache.commons.dbutils.QueryRunner" scope="prototype"><!--注入数据源--><constructor-arg name="ds" ref="dateSource"/></bean><!--配置数据源--><bean id="dateSource" class="com.mchange.v2.c3p0.ComboPooledDataSource"><!--配置数据库的必备信息--><property name="driverClass" value="com.mysql.cj.jdbc.Driver"/><property name="jdbcUrl" value="jdbc:mysql://localhost:3306/spring1"/><property name="user" value="root"/><property name="password" value="123456"/></bean>
</beans>

修改Dao实体类

package com.dao.impl;import com.dao.AccountDao;
import com.domain.Account;
import org.apache.commons.dbutils.QueryRunner;
import org.apache.commons.dbutils.handlers.BeanHandler;
import org.apache.commons.dbutils.handlers.BeanListHandler;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Repository;import java.util.List;/*** 账户的持久层实现类*/
@Repository(value = "accountDao")
public class AccountDaoImpl implements AccountDao {@Autowired	//使用注解按类型自动注入private QueryRunner runner;public List<Account> findAllAccount() {try{return runner.query("select * from account",new BeanListHandler<Account>(Account.class));}catch (Exception e){throw new RuntimeException(e);}}public Account findAccountById(Integer accountId) {try{return runner.query("select * from account where id = ? ",new BeanHandler<Account>(Account.class),accountId);}catch (Exception e){throw new RuntimeException(e);}}public void saveAccount(Account account) {try{runner.update("insert into account(name,money) value(?,?)",account.getName(),account.getMoney());}catch (Exception e){throw new RuntimeException(e);}}public void updateAccount(Account account) {try{runner.update("update account set name=?,money=? where id=?",account.getName(),account.getMoney(),account.getId());}catch (Exception e){throw new RuntimeException(e);}}public void deleteAccount(Integer accountId) {try{runner.update("delete from account where id=?",accountId);}catch (Exception e){throw new RuntimeException(e);}}
}

修改Service实体类

package com.service.impl;import com.dao.AccountDao;
import com.domain.Account;
import com.service.AccountService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;import java.util.List;/*** 账户的业务层实现类*/
@Service(value = "accountService")
public class AccountServiceImpl implements AccountService {@Autowired		//使用注解按类型自动注入private AccountDao accountDao;public List<Account> findAllAccount() {return accountDao.findAllAccount();}public Account findAccountById(Integer accountId) {return accountDao.findAccountById(accountId);}public void saveAccount(Account account) {accountDao.saveAccount(account);}public void updateAccount(Account account) {accountDao.updateAccount(account);}public void deleteAccount(Integer accountId) {accountDao.deleteAccount(accountId);}
}

其他的保持和原来的不变即可

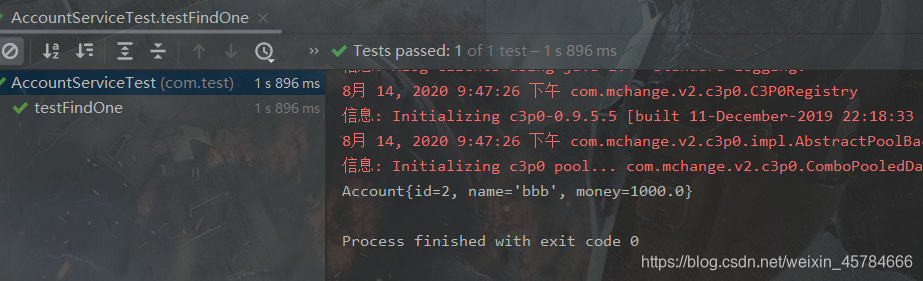

部分运行结果
