将ADS1.2的工程迁移到KEIL上-基于2440

新版的MDK支持2440相关芯片,但是很多人的工程都是基于ADS1.2开发,文字不好看,兼容性不好等等问题,而且电脑上装太多开发工具切换起来也麻烦,所以切换到MDK开发2440裸机程序应该是一个很好的选择

1.       新建MDK工程,芯片选择2440

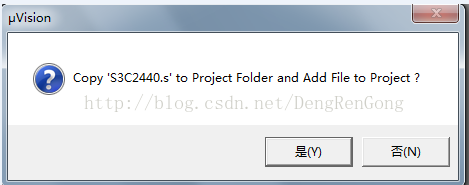

不拷贝启动代码,因为我们用自己的启动代码

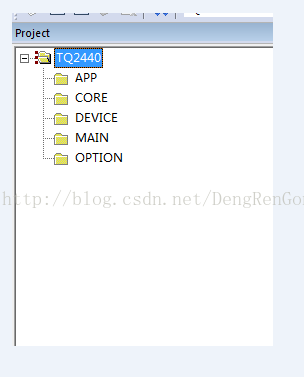

2.       建立工程目录分级,建立完成后如下所示

拷贝相应代码到对应目录中

Option中拷贝

Core中拷贝

建立新的main文件

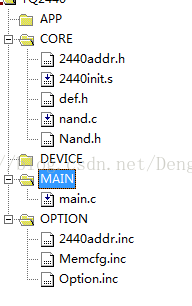

将文件加入工程

路径中建立包含

还要为asm文件建立包含

修改2440init.s文件

首先,MDK默认放在最前面的段是RESET段,将2440init.s第84行(可能你的不是) AREA    Init,CODE,READONLY修改为 AREA    RESET,CODE,READONLY

这样编译器就能找到入口点了

在上面这句下面加上一行

PRESERVE8    ;8 字对齐(为了让汇编代码8字节对齐)

修改

IMPORT  |Image$$RO$$Base| ; Base of ROM code

IMPORT  |Image$$RO$$Limit|  ; End of ROM code (=start of ROM data)

IMPORT  |Image$$RW$$Base|   ; Base of RAM to initialise

IMPORT  |Image$$ZI$$Base|   ; Base and limit of area

IMPORT  |Image$$ZI$$Limit|  ; to zero initialise

这些是通过ADS的工程设置里面设定的RO Base和RW Base设定的,在MDK中的名称不叫这个

修改为

IMPORT  |Image$$ER_ROM1$$RO$$Base|   ; Base of ROM code

IMPORT  |Image$$ER_ROM1$$RO$$Limit|  ; End of ROM code (=start of ROM data)

IMPORT  |Image$$RW_RAM1$$RW$$Base|   ; Base of RAM to initialise

IMPORT  |Image$$RW_RAM1$$ZI$$Base|   ; Base and limit of area

IMPORT  |Image$$RW_RAM1$$ZI$$Limit|  ; to zero initialize

上面的改了下面的这个也要改

BaseOfROM DCD |Image$$RO$$Base|

TopOfROM DCD |Image$$RO$$Limit|

BaseOfBSS DCD |Image$$RW$$Base|

BaseOfZero DCD |Image$$ZI$$Base|

EndOfBSS DCD |Image$$ZI$$Limit|

修改为

BaseOfROM DCD |Image$$ER_ROM1$$RO$$Base|

TopOfROM DCD |Image$$ER_ROM1$$RO$$Limit|

BaseOfBSS DCD |Image$$RW_RAM1$$RW$$Base|

BaseOfZero DCD |Image$$RW_RAM1$$ZI$$Base|

EndOfBSS  DCD  |Image$$RW_RAM1$$ZI$$Limit|

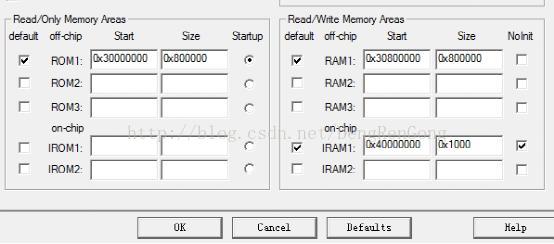

此时还需要设置代码运行区和存放区

ROM区域需要打开nand.c中的RdNF2SDRAM函数查看起始地址

我的起始地址为0x30000000 大小为0x100000

Size必须大于0x100000,RAM空间大于ROM空间且少于最大物理空间即可(不要忘了打钩勾)

编写Main函数,记住是首字母大写

此时编译就可以通过了

随意将一个ADS1.2编写好的led驱动放进去,最终修改如下

Led.h

#ifndef __LED_H
#define __LED_H
#include "2440addr.h"typedef enum
{LED1 = 0,	//GPB5LED2 = 1,	//GPB6LED3 = 2,	//GPB5LED4 = 3	//GPB8
}LEDn;void ledInit(LEDn led);
void ledInitAll(void);
void ledOn(LEDn led);
void ledOff(LEDn led);
void ledTurn(LEDn led);
unsigned char getLedStatus(LEDn led);//TQ2440led引脚 B5 B6 B7 B8#endif

Led.c

#include "led.h"void ledInit(LEDn led)
{if(led == LED1){rGPBCON &= ~(3<<10);	//端口写入01设置为输出模式，先清零rGPBCON |= (1<<10);		//设置为输出rGPBUP &= ~(1<<5);		//禁止上拉rGPBDAT |= (1<<5);		//设置初始值为1，灯灭}else if(led == LED2){rGPBCON &= ~(3<<12);rGPBCON |= (1<<12);rGPBUP &= ~(1<<6);rGPBDAT |= (1<<6);}else if(led == LED3){rGPBCON &= ~(3<<14);rGPBCON |= (1<<14);rGPBUP &= ~(1<<7);rGPBDAT |= (1<<7);}else if(led == LED4){rGPBCON &= ~(3<<16);rGPBCON |= (1<<16);rGPBUP &= ~(1<<8);rGPBDAT |= (1<<8);}
}void ledInitAll(void)
{rGPBCON &=~((3<<10)|(3<<12)|(3<<14)|(3<<16));	//对GPBCON[10:17]清零rGPBCON |=((1<<10)|(1<<12)|(1<<14)|(1<<16));	//设置GPB5~8为输出rGPBUP &=~((1<<5)|(1<<6)|(1<<7)|(1<<8));		//设置GPB5~8的上拉功能rGPBDAT |=(1<<5)|(1<<6)|(1<<7)|(1<<8);			//关闭LED
}void ledOn(LEDn led)
{rGPBDAT &= ~(1<<(5+led));
}void ledOff(LEDn led)
{rGPBDAT |= (1<<(5+led));
}void ledTurn(LEDn led)
{if(getLedStatus(led))ledOn(led);else ledOff(led);
}unsigned char getLedStatus(LEDn led)//获取led状态，灭为1亮为0
{if((rGPBDAT & (1<<(5+led))))return 1;else return 0;
}

Main.c

#include "2440addr.h"
#include "led.h"
void Delay(void)
{int i;for(i=0;i<1000000;i++);
}int Main()
{ledInitAll();while(1){ledTurn(LED1);Delay();ledTurn(LED2);Delay();ledTurn(LED3);Delay();ledTurn(LED4);Delay();}
}

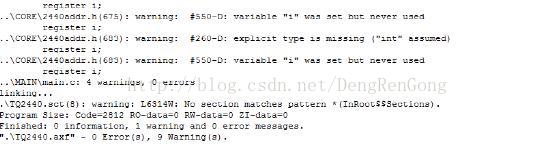

最后编译,结果如下

但是生成的是HEX,我们需要指令转换成BIN文件

在这里写入指令

记住对勾!

编译,提示如下

BIN文件生成OK了

下载进去,流水灯完全正常,收工!

最后附带修改好了2440init.s文件

2440init.s

;=========================================
; NAME: 2440INIT.S
; DESC: C start up codes
;       Configure memory, ISR ,stacks
;	Initialize C-variables
;=========================================GET option.incGET memcfg.incGET 2440addr.incBIT_SELFREFRESH EQU	(1<<22);Pre-defined constants
USERMODE    EQU 	0x10
FIQMODE     EQU 	0x11
IRQMODE     EQU 	0x12
SVCMODE     EQU 	0x13
ABORTMODE   EQU 	0x17
UNDEFMODE   EQU 	0x1b
MODEMASK    EQU 	0x1f
NOINT       EQU 	0xc0;The location of stacks
UserStack	EQU	(_STACK_BASEADDRESS-0x3800)	;0x33ff4800 ~
SVCStack	EQU	(_STACK_BASEADDRESS-0x2800)	;0x33ff5800 ~
UndefStack	EQU	(_STACK_BASEADDRESS-0x2400)	;0x33ff5c00 ~
AbortStack	EQU	(_STACK_BASEADDRESS-0x2000)	;0x33ff6000 ~
IRQStack	EQU	(_STACK_BASEADDRESS-0x1000)	;0x33ff7000 ~
FIQStack	EQU	(_STACK_BASEADDRESS-0x0)	;0x33ff8000 ~;Check if tasm.exe(armasm -16 ...@ADS 1.0) is used.GBLL    THUMBCODE[ {CONFIG} = 16
THUMBCODE SETL  {TRUE}CODE32|
THUMBCODE SETL  {FALSE}]MACROMOV_PC_LR[ THUMBCODEbx lr|mov	pc,lr]MENDMACROMOVEQ_PC_LR[ THUMBCODEbxeq lr|moveq pc,lr]MENDMACRO
$HandlerLabel HANDLER $HandleLabel$HandlerLabelsub	sp,sp,#4	;decrement sp(to store jump address)stmfd	sp!,{r0}	;PUSH the work register to stack(lr does not push because it return to original address)ldr     r0,=$HandleLabel;load the address of HandleXXX to r0ldr     r0,[r0]	 ;load the contents(service routine start address) of HandleXXXstr     r0,[sp,#4]      ;store the contents(ISR) of HandleXXX to stackldmfd   sp!,{r0,pc}     ;POP the work register and pc(jump to ISR)MENDIMPORT  |Image$$ER_ROM1$$RO$$Base|   ; Base of ROM code IMPORT  |Image$$ER_ROM1$$RO$$Limit|  ; End of ROM code (=start of ROM data) IMPORT  |Image$$RW_RAM1$$RW$$Base|   ; Base of RAM to initialise IMPORT  |Image$$RW_RAM1$$ZI$$Base|   ; Base and limit of area IMPORT  |Image$$RW_RAM1$$ZI$$Limit|  ; to zero initialise IMPORT	MMU_SetAsyncBusModeIMPORT	MMU_SetFastBusMode	;IMPORT  Main		; The main entry of mon programIMPORT  RdNF2SDRAM	; Copy Image from Nand Flash to SDRAMAREA    RESET,CODE,READONLYPRESERVE8    ;8 字对齐 ENTRYEXPORT	__ENTRY
__ENTRY
ResetEntry;1)The code, which converts to Big-endian, should be in little endian code.;2)The following little endian code will be compiled in Big-Endian mode.;  The code byte order should be changed as the memory bus width.;3)The pseudo instruction,DCD can not be used here because the linker generates error.ASSERT	:DEF:ENDIAN_CHANGE[ ENDIAN_CHANGEASSERT  :DEF:ENTRY_BUS_WIDTH[ ENTRY_BUS_WIDTH=32b	ChangeBigEndian	    ;DCD 0xea000007][ ENTRY_BUS_WIDTH=16andeq	r14,r7,r0,lsl #20   ;DCD 0x0007ea00][ ENTRY_BUS_WIDTH=8streq	r0,[r0,-r10,ror #1] ;DCD 0x070000ea]|b	ResetHandler]b	HandlerUndef	;handler for Undefined modeb	HandlerSWI	;handler for SWI interruptb	HandlerPabort	;handler for PAbortb	HandlerDabort	;handler for DAbortb	.		;reservedb	HandlerIRQ	;handler for IRQ interruptb	HandlerFIQ	;handler for FIQ interrupt;@0x20b	EnterPWDN	; Must be @0x20.
ChangeBigEndian
;@0x24[ ENTRY_BUS_WIDTH=32DCD	0xee110f10	;0xee110f10 => mrc p15,0,r0,c1,c0,0DCD	0xe3800080	;0xe3800080 => orr r0,r0,#0x80;  //Big-endianDCD	0xee010f10	;0xee010f10 => mcr p15,0,r0,c1,c0,0][ ENTRY_BUS_WIDTH=16DCD 0x0f10ee11DCD 0x0080e380DCD 0x0f10ee01][ ENTRY_BUS_WIDTH=8DCD 0x100f11eeDCD 0x800080e3DCD 0x100f01ee]DCD 0xffffffff  ;swinv 0xffffff is similar with NOP and run well in both endian mode.DCD 0xffffffffDCD 0xffffffffDCD 0xffffffffDCD 0xffffffffb ResetHandlerHandlerFIQ	HANDLER HandleFIQ
HandlerIRQ	HANDLER HandleIRQ
HandlerUndef	HANDLER HandleUndef
HandlerSWI	HANDLER HandleSWI
HandlerDabort	HANDLER HandleDabort
HandlerPabort	HANDLER HandlePabortIsrIRQsub	sp,sp,#4       ;reserved for PCstmfd	sp!,{r8-r9}ldr	r9,=INTOFFSETldr	r9,[r9]ldr	r8,=HandleEINT0add	r8,r8,r9,lsl #2ldr	r8,[r8]str	r8,[sp,#8]ldmfd	sp!,{r8-r9,pc}LTORG;=======
; ENTRY
;=======
ResetHandlerldr	r0,=WTCON       ;watch dog disableldr	r1,=0x0str	r1,[r0]ldr	r0,=INTMSKldr	r1,=0xffffffff  ;all interrupt disablestr	r1,[r0]ldr	r0,=INTSUBMSKldr	r1,=0x7fff		;all sub interrupt disablestr	r1,[r0][ {FALSE}; GPBDAT = (rGPFDAT & ~(0xf<<4)) | ((~data & 0xf)<<4);; Led_Displayldr	r0,=GPBCONldr	r1,=0x00555555str	r1,[r0]ldr	r0,=GPBDATldr	r1,=0x07festr	r1,[r0]];To reduce PLL lock time, adjust the LOCKTIME register.ldr	r0,=LOCKTIMEldr	r1,=0xffffffstr	r1,[r0][ PLL_ON_START; Added for confirm clock divide. for 2440.; Setting value Fclk:Hclk:Pclkldr	r0,=CLKDIVNldr	r1,=CLKDIV_VAL		; 0=1:1:1, 1=1:1:2, 2=1:2:2, 3=1:2:4, 4=1:4:4, 5=1:4:8, 6=1:3:3, 7=1:3:6.str	r1,[r0];program has not been copied, so use these directly[ CLKDIV_VAL>1 		; means Fclk:Hclk is not 1:1.mrc p15,0,r0,c1,c0,0orr r0,r0,#0xc0000000;R1_nF:OR:R1_iAmcr p15,0,r0,c1,c0,0|mrc p15,0,r0,c1,c0,0bic r0,r0,#0xc0000000;R1_iA:OR:R1_nFmcr p15,0,r0,c1,c0,0];Configure UPLLldr	r0,=UPLLCONldr	r1,=((U_MDIV<<12)+(U_PDIV<<4)+U_SDIV)				;Fin = 12.0MHz, UCLK = 48MHzstr	r1,[r0]nop	; Caution: After UPLL setting, at least 7-clocks delay must be inserted for setting hardware be completed.nopnopnopnopnopnop;Configure MPLLldr	r0,=MPLLCONldr	r1,=((M_MDIV<<12)+(M_PDIV<<4)+M_SDIV)				;Fin = 12.0MHz, FCLK = 400MHzstr	r1,[r0]];Check if the boot is caused by the wake-up from SLEEP mode.ldr	r1,=GSTATUS2ldr	r0,[r1]tst	r0,#0x2;In case of the wake-up from SLEEP mode, go to SLEEP_WAKEUP handler.bne	WAKEUP_SLEEPEXPORT StartPointAfterSleepWakeUp
StartPointAfterSleepWakeUp;Set memory control registersadrl	r0,SMRDATAldr	r1,=BWSCON	;BWSCON Addressadd	r2, r0, #52	;End address of SMRDATA0ldr	r3, [r0], #4str	r3, [r1], #4cmp	r2, r0bne	%B0;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;       When EINT0 is pressed,  Clear SDRAM
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
; check if EIN0 button is pressedldr	r0,=GPFCONldr	r1,=0x0str	r1,[r0]ldr	r0,=GPFUPldr	r1,=0xffstr	r1,[r0]ldr	r1,=GPFDATldr	r0,[r1]bic	r0,r0,#(0x1e<<1)  ; bit cleartst	r0,#0x1bne %F1; Clear SDRAM Startldr	r0,=GPFCONldr	r1,=0x55aastr	r1,[r0]ldr	r0,=GPFDATldr	r1,=0x0str	r1,[r0]	;LED=****mov r1,#0mov r2,#0mov r3,#0mov r4,#0mov r5,#0mov r6,#0mov r7,#0mov r8,#0ldr	r9,=0x4000000   ;64MBldr	r0,=0x30000000
0	stmia	r0!,{r1-r8}subs	r9,r9,#32 bne	%B0;Clear SDRAM End1;Initialize stacksbl	InitStacks;===========================================================ldr	r0, =BWSCONldr	r0, [r0]ands	r0, r0, #6		;OM[1:0] != 0, NOR FLash bootbne	copy_proc_beg		;do not read nand flashadr	r0, ResetEntry		;OM[1:0] == 0, NAND FLash bootcmp	r0, #0			;if use Multi-ice, bne	copy_proc_beg		;do not read nand flash for boot;nop
;===========================================================
nand_boot_beg[ {TRUE}bl RdNF2SDRAM]ldr	pc, =copy_proc_beg
;===========================================================
copy_proc_begadr	r0, ResetEntryldr	r2, BaseOfROMcmp	r0, r2ldreq	r0, TopOfROMbeq	InitRam	ldr r3, TopOfROM
0	ldmia	r0!, {r4-r7}stmia	r2!, {r4-r7}cmp	r2, r3bcc	%B0sub	r2, r2, r3sub	r0, r0, r2				InitRam	ldr	r2, BaseOfBSSldr	r3, BaseOfZero
0cmp	r2, r3ldrcc	r1, [r0], #4strcc	r1, [r2], #4bcc	%B0	mov	r0,	#0ldr	r3,	EndOfBSS
1	cmp	r2,	r3strcc	r0, [r2], #4bcc	%B1ldr	pc, =%F2		;goto compiler address
2;	[ CLKDIV_VAL>1 		; means Fclk:Hclk is not 1:1.
;	bl	MMU_SetAsyncBusMode
;	|
;	bl MMU_SetFastBusMode	; default value.
;	];===========================================================; Setup IRQ handlerldr	r0,=HandleIRQ	;This routine is neededldr	r1,=IsrIRQ	;if there is not 'subs pc,lr,#4' at 0x18, 0x1cstr	r1,[r0][ :LNOT:THUMBCODEbl	Main	;Do not use main() because ......b	.][ THUMBCODE	 ;for start-up code for Thumb modeorr	lr,pc,#1bx	lrCODE16bl	Main	;Do not use main() because ......b	.CODE32];function initializing stacks
InitStacks;Do not use DRAM,such as stmfd,ldmfd......;SVCstack is initialized before;Under toolkit ver 2.5, 'msr cpsr,r1' can be used instead of 'msr cpsr_cxsf,r1'mrs	r0,cpsrbic	r0,r0,#MODEMASKorr	r1,r0,#UNDEFMODE:OR:NOINTmsr	cpsr_cxsf,r1		;UndefModeldr	sp,=UndefStack		; UndefStack=0x33FF_5C00orr	r1,r0,#ABORTMODE:OR:NOINTmsr	cpsr_cxsf,r1		;AbortModeldr	sp,=AbortStack		; AbortStack=0x33FF_6000orr	r1,r0,#IRQMODE:OR:NOINTmsr	cpsr_cxsf,r1		;IRQModeldr	sp,=IRQStack		; IRQStack=0x33FF_7000orr	r1,r0,#FIQMODE:OR:NOINTmsr	cpsr_cxsf,r1		;FIQModeldr	sp,=FIQStack		; FIQStack=0x33FF_8000bic	r0,r0,#MODEMASK:OR:NOINTorr	r1,r0,#SVCMODEmsr	cpsr_cxsf,r1		;SVCModeldr	sp,=SVCStack		; SVCStack=0x33FF_5800;USER mode has not be initialized.mov	pc,lr;The LR register will not be valid if the current mode is not SVC mode.LTORGSMRDATA DATA
; Memory configuration should be optimized for best performance
; The following parameter is not optimized.
; Memory access cycle parameter strategy
; 1) The memory settings is  safe parameters even at HCLK=75Mhz.
; 2) SDRAM refresh period is for HCLK<=75Mhz.DCD (0+(B1_BWSCON<<4)+(B2_BWSCON<<8)+(B3_BWSCON<<12)+(B4_BWSCON<<16)+(B5_BWSCON<<20)+(B6_BWSCON<<24)+(B7_BWSCON<<28))DCD ((B0_Tacs<<13)+(B0_Tcos<<11)+(B0_Tacc<<8)+(B0_Tcoh<<6)+(B0_Tah<<4)+(B0_Tacp<<2)+(B0_PMC))   ;GCS0DCD ((B1_Tacs<<13)+(B1_Tcos<<11)+(B1_Tacc<<8)+(B1_Tcoh<<6)+(B1_Tah<<4)+(B1_Tacp<<2)+(B1_PMC))   ;GCS1DCD ((B2_Tacs<<13)+(B2_Tcos<<11)+(B2_Tacc<<8)+(B2_Tcoh<<6)+(B2_Tah<<4)+(B2_Tacp<<2)+(B2_PMC))   ;GCS2DCD ((B3_Tacs<<13)+(B3_Tcos<<11)+(B3_Tacc<<8)+(B3_Tcoh<<6)+(B3_Tah<<4)+(B3_Tacp<<2)+(B3_PMC))   ;GCS3DCD ((B4_Tacs<<13)+(B4_Tcos<<11)+(B4_Tacc<<8)+(B4_Tcoh<<6)+(B4_Tah<<4)+(B4_Tacp<<2)+(B4_PMC))   ;GCS4DCD ((B5_Tacs<<13)+(B5_Tcos<<11)+(B5_Tacc<<8)+(B5_Tcoh<<6)+(B5_Tah<<4)+(B5_Tacp<<2)+(B5_PMC))   ;GCS5DCD ((B6_MT<<15)+(B6_Trcd<<2)+(B6_SCAN))    ;GCS6DCD ((B7_MT<<15)+(B7_Trcd<<2)+(B7_SCAN))    ;GCS7DCD ((REFEN<<23)+(TREFMD<<22)+(Trp<<20)+(Tsrc<<18)+(Tchr<<16)+REFCNT)DCD 0x32	    ;SCLK power saving mode, BANKSIZE 128M/128MDCD 0x30	    ;MRSR6 CL=3clkDCD 0x30	    ;MRSR7 CL=3clkBaseOfROM  DCD  |Image$$ER_ROM1$$RO$$Base|
TopOfROM  DCD  |Image$$ER_ROM1$$RO$$Limit|
BaseOfBSS  DCD  |Image$$RW_RAM1$$RW$$Base|
BaseOfZero  DCD  |Image$$RW_RAM1$$ZI$$Base|
EndOfBSS  DCD  |Image$$RW_RAM1$$ZI$$Limit| ALIGN;Function for entering power down mode
; 1. SDRAM should be in self-refresh mode.
; 2. All interrupt should be maksked for SDRAM/DRAM self-refresh.
; 3. LCD controller should be disabled for SDRAM/DRAM self-refresh.
; 4. The I-cache may have to be turned on.
; 5. The location of the following code may have not to be changed.;void EnterPWDN(int CLKCON);
EnterPWDNmov r2,r0		;r2=rCLKCONtst r0,#0x8		;SLEEP mode?bne ENTER_SLEEPENTER_STOPldr r0,=REFRESHldr r3,[r0]		;r3=rREFRESHmov r1, r3orr r1, r1, #BIT_SELFREFRESHstr r1, [r0]		;Enable SDRAM self-refreshmov r1,#16			;wait until self-refresh is issued. may not be needed.
0	subs r1,r1,#1bne %B0ldr r0,=CLKCON		;enter STOP mode.str r2,[r0]mov r1,#32
0	subs r1,r1,#1	;1) wait until the STOP mode is in effect.bne %B0		;2) Or wait here until the CPU&Peripherals will be turned-off;   Entering SLEEP mode, only the reset by wake-up is available.ldr r0,=REFRESH ;exit from SDRAM self refresh mode.str r3,[r0]MOV_PC_LRENTER_SLEEP;NOTE.;1) rGSTATUS3 should have the return address after wake-up from SLEEP mode.ldr r0,=REFRESHldr r1,[r0]		;r1=rREFRESHorr r1, r1, #BIT_SELFREFRESHstr r1, [r0]		;Enable SDRAM self-refreshmov r1,#16			;Wait until self-refresh is issued,which may not be needed.
0	subs r1,r1,#1bne %B0ldr	r1,=MISCCRldr	r0,[r1]orr	r0,r0,#(7<<17)  ;Set SCLK0=0, SCLK1=0, SCKE=0.str	r0,[r1]ldr r0,=CLKCON		; Enter sleep modestr r2,[r0]b .			;CPU will die here.WAKEUP_SLEEP;Release SCLKn after wake-up from the SLEEP mode.ldr	r1,=MISCCRldr	r0,[r1]bic	r0,r0,#(7<<17)  ;SCLK0:0->SCLK, SCLK1:0->SCLK, SCKE:0->=SCKE.str	r0,[r1];Set memory control registersldr	r0,=SMRDATAldr	r1,=BWSCON	;BWSCON Addressadd	r2, r0, #52	;End address of SMRDATA
0ldr	r3, [r0], #4str	r3, [r1], #4cmp	r2, r0bne	%B0mov r1,#256
0	subs r1,r1,#1	;1) wait until the SelfRefresh is released.bne %B0ldr r1,=GSTATUS3 	;GSTATUS3 has the start address just after SLEEP wake-upldr r0,[r1]mov pc,r0;=====================================================================
; Clock division test
; Assemble code, because VSYNC time is very short
;=====================================================================EXPORT CLKDIV124EXPORT CLKDIV144CLKDIV124ldr     r0, = CLKDIVNldr     r1, = 0x3		; 0x3 = 1:2:4str     r1, [r0]
;	wait until clock is stablenopnopnopnopnopldr     r0, = REFRESHldr     r1, [r0]bic		r1, r1, #0xffbic		r1, r1, #(0x7<<8)orr		r1, r1, #0x470	; REFCNT135str     r1, [r0]nopnopnopnopnopmov     pc, lrCLKDIV144ldr     r0, = CLKDIVNldr     r1, = 0x4		; 0x4 = 1:4:4str     r1, [r0]
;	wait until clock is stablenopnopnopnopnopldr     r0, = REFRESHldr     r1, [r0]bic		r1, r1, #0xffbic		r1, r1, #(0x7<<8)orr		r1, r1, #0x630	; REFCNT675 - 1520str     r1, [r0]nopnopnopnopnopmov     pc, lrALIGNAREA RamData, DATA, READWRITE^   _ISR_STARTADDRESS		; _ISR_STARTADDRESS=0x33FF_FF00
HandleReset 	#   4
HandleUndef 	#   4
HandleSWI		#   4
HandlePabort    #   4
HandleDabort    #   4
HandleReserved  #   4
HandleIRQ		#   4
HandleFIQ		#   4;Do not use the label 'IntVectorTable',
;The value of IntVectorTable is different with the address you think it may be.
;IntVectorTable
;@0x33FF_FF20
HandleEINT0		#   4
HandleEINT1		#   4
HandleEINT2		#   4
HandleEINT3		#   4
HandleEINT4_7	#   4
HandleEINT8_23	#   4
HandleCAM		#   4		; Added for 2440.
HandleBATFLT	#   4
HandleTICK		#   4
HandleWDT		#   4
HandleTIMER0 	#   4
HandleTIMER1 	#   4
HandleTIMER2 	#   4
HandleTIMER3 	#   4
HandleTIMER4 	#   4
HandleUART2  	#   4
;@0x33FF_FF60
HandleLCD 		#   4
HandleDMA0		#   4
HandleDMA1		#   4
HandleDMA2		#   4
HandleDMA3		#   4
HandleMMC		#   4
HandleSPI0		#   4
HandleUART1		#   4
HandleNFCON		#   4		; Added for 2440.
HandleUSBD		#   4
HandleUSBH		#   4
HandleIIC		#   4
HandleUART0 	#   4
HandleSPI1 		#   4
HandleRTC 		#   4
HandleADC 		#   4
;@0x33FF_FFA0END
